Door Pull 23

This door pull features an 8" center to center screw dimension. The handle ships with thru bolts and finish washers. Also known as a Door Handle, or Door Grip.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Toilet Partition One Ear Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/2" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 1". Manufacture part # 1763.

Shipped with mounting screws.

Toilet Partition Continuous One Ear Wall Bracket For 3/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2079.

Toilet Partition Continuous Two Ear Wall Bracket For 1/2" Panel X 57" Long Stamped Stainless Steel. 18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2679.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

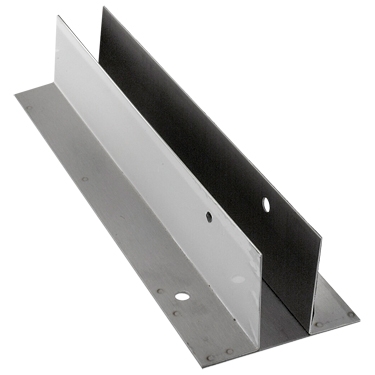

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

Window Track -13-11/16"

Used on the Truth Steel Wheeled Single Arm Operators (Trtuh #30175), Fenestra and Hopes Operators

Window Strike 3/16" Thick Inline

1-3/8" hole spacing x 3/16" thick
White bronze construction with nickel plating.

Window Spring Latch.

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

3 Prong 5/8" Slide For Wood Furniture

5/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

3 Prong 7/8" Slide For Wood Furniture

7/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

Stainless Steel Partition Support Brace U Shape, Cut Adjustable Height. Constructed of 13 Gauge Stainless Steel with Satin finish. Used to support/brace the bottom of partitions and is mounted to the restroom floor. Designed to work with partition panels or pilasters to create stability. Available for material thickness of 3/4", 7/8", 1" and 1-1/4". These partitions support braces are field adjustable by cutting the tube. Ships as standard size 12-1/2" (Max Size) and can be cut down to as small as 3"(Min Size) to create floor clearance. Features a press fit bushing to set the height for the support brace. Ships with fastners. Should you have any questions about this item please let us know. Known as part numbers 135009, 135019, 135029 and 135039.

Notes

• Only Available in U Shape Design
• Field Cut Adjustable: Ships at 12-1/2"(Max) and cuttable down to 3"(Min.)
• Thickness Available Sizes: 3/4", 7/8", 1" and 1-1/4"

Floor Saver Glide Cap Protective Chair Tip

This Glide Cap has a raised ring on bottom to prevent your chairs from scratching your floors, while at the same time extending the life of your current glides. The raised ring will push the dirt that is on the floor away so it will not scratch the floor. This cap will fit on all of our Metal and Nylon Based Swivel Glides.

This Glide Cap is designed for use with our SGR Glides, or Swivel Glides Round 1-1/4" bases.

Roto Folding Handle for the Wi21339 and Wi36540.

Lyon Folding Chair Rear Leg Foot, base is 1 1/4" x 13/16" and the insert measurement is 3/8" x 3/4". This is Lyon part number 1593.

Toilet Partition Continuous One Ear Wall Bracket For 1-1/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-11/16" x 57" long. Mounting holes are 1-19/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2359.

Toilet Partition Two Ear Wall Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/16" with the mounting screws are 2-13/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1639.

Shipped with screws

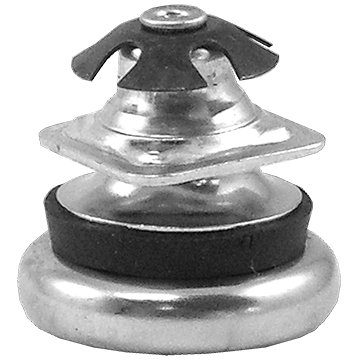

Swivel Glide for a Square tubing Leg  chair with a 1" O.D. X 7/8" I.D. 1 1/16" base diameter. This glide does not have a ferrule.

Plastic Chair Tip Bumpers for Stacking Chair. Bumper is 1/2" Diameter, 1/4" stem diamter, 3/8" stem length, 3/16" base height and 1/2" base diameter. Available in Clear Plastic Only.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Ives Wall Mounted Door Stop WS65

• Burnished cast aluminum.
• Replaceable non-marring white rubber bumper.
• Packed with sheet metal screws.

Base Diameter: 1-5/8"
Overall Projection: 3-3/4"

GU Casement Sash Lock

Die Cast Metal and Plastic construction Multi-Point Locking Handle. The base measures 4" tall by 3/4" wide with a 3-5/16" hole spacing.

White only

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous U Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 54" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2794, 650-1968, 650-1968-54 and U Channel 1 x 54. These brackets are shipped with all the needed fasteners.

Accurate Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.

Shipped with screws.

Used by accurate and global.

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel, Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1849.

Shipped with screws
