Standard 4020 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Ives Floor Mounted Door Holder FS42

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

Global Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

The Partition Privacy Covers, Great for Restroom Partition Door Gaps. Block's gaps between door and pilaster for both sides. Includes 2 per package, one for each side of door, 58" Tall.  The Cover is just under 2" wide with the clear rigid vinyl mounting strip being 7/8" wide, and the cover being 1-1/8" wide. This product ships in an oversize box ground. This product is not recommended for solid plastic partitions, HDPE or solid polymer material. This is great for powder coated steel, plastic laminate, stainless steel and solid phenolic materials only.

The informational and installation video are shown in the Description Tab below. In Stock for quick deliveries.

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Standard 4110 series closer shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 EDA

Handing diagram

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

Comtec Toilet Partitions In Swing Flat Stop 6"

Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-In Swing Flat. Manufacture part # 5798.

Shipped with mounting screws.

Sanymetal Partitions Keeper Bumper And Strike For Concealed Latches Inswing/Outswing 1-1/4"

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4" This Strike and Keeper are for square post or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960

Shipped with screws for mounting.

Standard 4110 series closer shipped with EXTRA DUTY HOLD OPEN arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The friction hold open arm allows for adjustable stop hold open positions up to 180 degrees.

We ship the 4111 HEDA

Toilet Partition Inswing Keeper Bumper 1-1/4" Round Edge Post

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5580

Shipped with screws for mounting.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

Metpar Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

Roto Casement Sash Lock

Housing measures x 4-3/4" tall by x 3/4" wide. The hole spacing is 3-15/16" center to center. The lifting finger projects out 1-1/8"" with the cut out measuring 11-16" deep by 5/16".

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.

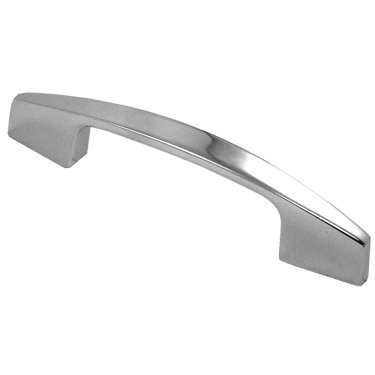

Partition Door Pull 2-3/4" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6200.

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

Ordering Online All Plastic Laminate Floor Mounted Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 1 week, 3-4 days travel. 6"x70" pilaster, _ _ x 58"ht panel and all standard hardware included. 16", 18", 22", 28", 34", 40", 46", 52", 55", 58", 60", 65", 70" and 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Cast stainless steel 5-1/2" double door pulls, for 3/4" thick doors. Also known as 900112 Replaced by 630112. Overall width is 6-3/4" and has hole spacing of 5-7/8" between screws.

International 521 Forearm

Arm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left
swinging doors. Closer meets ADA requirements.

Cast Stainless Steel Partition Keeper 1-1/2" Between Screws

Cast stainless steel construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5183.

Shipped with mounting screws.

Flush Metal Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

International Door Closer 520 Main Arm

International Door Closer part # 520

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

LCN 4110 Fusible Link Door Closer

Standard 4110 series closer shipped with Fusible Link arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 FL

Partition Door Stop 2" Projection

Chrome plated Zamac die cast construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

American Sanitary Toilet Partition Top Hinge For 1-1/4" Square Edge Pilaster Or Post

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790

A=1-5/8"
