Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

Sanymetal Partitions Keeper Bumper And Strike For Concealed Latches Inswing/Outswing 1-1/4"

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4" This Strike and Keeper are for square post or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960

Shipped with screws for mounting.

Accurate Partitions Surface Mounted Slide Bolt Latch

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

also known as 9G0136

Knickerbocker Door Latch Inside Mechanism Kit, Door Pin Kit, also known as 8836, H749, H748. Works with General partitions. Used with plastic laminate toilet partitions.

Interlocking 1/2" x 11-7/8” x 11-7/8” recycled PVC tiles with bristle carpet inserts. Brushes off sand, dirt and slush from shoes and cart wheels; open grid drains away water and debris. Modular 11-7/8” x 11-7/8” tiles allow flexibility and the ability to fit the product to any size area. Tiles snap together easily to install and replace. Beveled ramp edges are available for non-recessed applications.

This product is part of our sustainable development program where the tiles can be returned at the end of the lifecycle for a credit toward replacement product. The material is then cleaned, ground, treated for contaminants in an environmentally safe process, and re-formed into new matting. Check with our customer service department for details.

Sold in cartons of 24 tiles, 23.36 sq feet

American Sanitary Slide Bolt Latch Chrome Plated.

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Sargent 8700 Old Style Top Latch-Before 11-2002

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.

Sargent Part # 97-2434

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Monarch 603 Concealed Top Latch Kit

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Yale Upper Latch 60-7220-0066-048 for use on the 7220 Narrow Stile Concealed Vertical Rod.

Medart Bleacher Latch Bracket Left Hand. 2" Hole Spacing.

Monarch Falcon 2130 Bottom Latch Strike

The Monarch Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

Window Spring Latch.

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

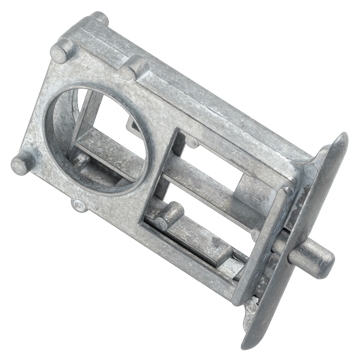

Flush Metal Partitions Concealed Latch Housing

Zamac die cast construction. The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

The Jackson 30-1311 Top Latch is used on the 2085 and 3185 Exit Devices. The new number for this product is 301311PKG.

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

ASI Alpaco Ada Indicator Latch is used by Accurate and Global Partitions. This European design is featured on the Alpaco Classic and Elegance Collection. Stainless steel construction make this indicator latch durable. These latches are created to be used on 3/4" thick material. Red and White indicator is used to show whether the stall is in use. Offers emergency access fom the outside with coin slot feature. Also known as 8273100.

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

Yale 7110 Top Latch

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Accurate Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.

Shipped with screws.

Used by accurate and global.

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Interior Steel Equipment Locker Nylon Latch Finger. Also known as 30501, 3244, 76017, is4407.

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

Republic Steel Locker Handle Latch Spring only. Also known as 71505, 2565, 70016, rs1117.

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown
