#10 x 5/8" Long Screw 6 Lobe(T-27) Chrome, 7/16" diameter head, Also known as 90963. This uses a Torx bit to drive the screw.

Toilet Partition "U" Wall Bracket For 1-1/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/32" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1949.

Shipped with screws

Dorma 9400 Rod Guide and Screw Package, featuring two rod guides in the Stainless Steel finish.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Chrome Plated Toilet Partition Keeper Bumper Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-19/32" on center. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5140

Shipped with mounting screws.

LYON METAL LOCKER SCREW, 8-32 X 1/2

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

Complete Stainless Steel Between 2 Wall Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

#12 X 2-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91903. This uses a Torx bit to drive screw.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

Chrome Plated Partition Ada Throw Latch 3-1/2" Between Screws Latch Only

Chrome plated brass construction. Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partiton Throw Latch. Manufacture part # 5151

Shipped with mounting screws.

Toilet Partition "U" Wall Bracket For 7/8" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-1/8". Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1909.

Shipped with screws

Hadrian HDPE Solid Plastic Between Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Urinal Screen Bracket Chrome Plated

This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..

Used with ADA Grab Bars For concealed mounting to the flange and set screw.

Lyon Screw 8-32 x 1/4

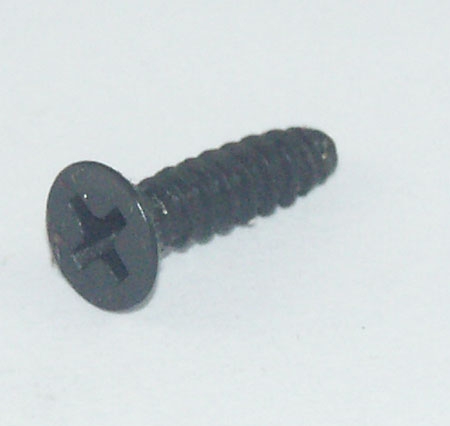

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Actuator 4-3/4" square, with blue engraved lettering with text.

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

Chrome Plated "U" Bracket For 7/8" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

The Matte Black Hadrian Corner Headrail Kit is designed for mounting Hadrian Matte Black Headrails. Constructed of stainless steel with matte black finish. Sping clip and end cap are made of plastic. This kits includes (2) Wall Brackets, (1) Spring Clip, (1) L Bracket, (1) Headrail Endcap and fasterners. Would be used for partitions that need headrail across front of partitions as well as down one side. Spring clips would be used if you are needing to join two headrails together. L bracket is used to attach Headrail on the side of partitions to back wall. Known as manufacturers part number 675411-BLK.

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615310.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Safeglides-Brown 1 1/2" Base Diameter Nail On Glide for furniture. To install the glide, tap it into your wooden furniture.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

1-1/16" Nail On Glide-Nickel Base

Nail on furniture glide, 1-1/16" diameter nickel plated metal base

1-1/4" Nail On Glide-Nickel Base

Nail on furniture glide, 1-1/4" diameter nickel plated metal base
