• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

Fiat Partitionas Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partitions Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partitions Top Hinge Casting For Metal

Unplated Zamac die casting construction. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.

The Dorma RTS88 Top Arm with Channel 8832 is for use on Double and Single Acting Doors.   It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

Jackson 1085/1285/2086 Top Bolt Guide Assembly

1-1/2” deep x 1-1/16” wide x roughly 1” tall

Jackson Part # 30-934

Von Duprin 33/3527A Center Case Kit Less Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

General Toilet Partitions Top Hinge For 1-1/4" Square Edge Pilaster Or Post

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790

A=1-5/8"

Partition Top Hinge Door Escutcheon For 7/8" Thick Door

Chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.

Bobrick B-2300 floor standing dome top waste receptacle in a satin finish stainless steel with black steel domed top, removable top with fingerprint resistant textured powder coated finish and has a 6" diameter opening. Hygienic no touch disposal of waste.The capacity is 18 gallons and is 15" in diameter x 31" in height.

Cast Stainless Steel Top Hinge for 1-1/4" Sq Edge

Cast Stainless Steel construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3793

a=1-11/16"

also known as general, american sanitary, flush, fiat

Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

Medart Bleacher Top Frame Cantiliver Guide, 5" width

Flush Metal Slide Bolt Latch

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

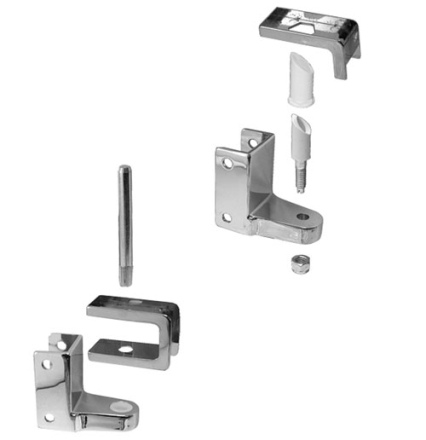

Toilet Partition Top & Bottom Hinge Assembly For 1" Door To 1" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1" square edge post or pilaster, for use with 1" thick doors. Kit includes top and bottom hinges, pintle, pin and inserts. Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153

Includes all screws.

Corbin Russwin ED5200S Latch Assembly

The Corbin Russwin ED5200S 681F608 Latch Assembly is used on the Wider Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED5200S Latch Assembly is located off the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 681F608

The Hub Position for this Latch is the ED5200

The Adams Rite EX88 and EX89 End Caps are for the EX Series Interlocking and Pullman Rim Devices.  The package includes the hinge side and latching side covers, along with the mounting screws.

Hadrian Partitions Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

Bobrick Partition Top Hinge For 1" Square Edge Post Or Pilasters

Chrome plated Zamac die cast construction. The hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 1/2" bushing diameter. Also known as a Bobrick Bathroom Stall Pivot Hinge - Top 1". Manufacture part # 3760, 650-8840.

Ships with mounting screws.

Fiat Partitions Top Hinge Pin

Zinc plated steel construction. The pin measures 3-9/32" long with a 7/16" diameter. The non pointed end has a threaded 10-24 hole. Also known as a Fiat Bathroom Stall Hinge Pin. Manufacture part # 99574.

Plate Top Single Wheel Caster - Swivel - 2" Wheel, 13/16" X 1-9/16" Hole Spacing, ball bearing swivel, zinc finish / black rubber wheel.  Tread available for both carpet and on carpet surfaces.

KK9B11 hard tread for carpet
KK9B12 soft tread for non carpet surface

EM 10 Ball Top Hanger

Dark Brown molded plastic hanger with a unique non-slip trouser bar. Available in conventional open hook and ball top for use with A, B or C receptacles.

The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Doromatic 1590 Latch Bolt Assembly

Replacement Latch Bolt Assembly for the Falcon Doromatic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603

American Sanitary Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

The Yale 2701 is a non handed door closer that can be mounted push, pull or top jamb. The closer is adjustable 1-6 sizing, so it will work on any size door, interior or exterior.  The closer ships with a full cover, and all the mounting screws. This a Grade 1 closer, which is the highest rating possible. The mounting is 3/4 x 12 inches on centers.

1085/1285/2086 Jackson Top Bolt Trip

The Jackson Top Bolt Trip Assembly is the piece that triggers the Top Bolt Guide Assembly and allows the rods to extend.

Jackson Part # 30-824-

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Flush Metal Toilet Partitions Top Hinge For 1-1/4" Square Pilaster Or Post

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Flush Metal Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790

A=1-5/8"

American Seating Rubber feet for #60, 253 and 254 Folding chairs.
