Hadrian stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Partition Door Pull 2-3/4" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6200.

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Cast stainless steel 5-1/2" double door pulls, for 3/4" thick doors. Also known as 900112 Replaced by 630112. Overall width is 6-3/4" and has hole spacing of 5-7/8" between screws.

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

International 521 Forearm

Arm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Ordering Online All Plastic Laminate Doors Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Plastic Laminate Doors Include: Standard Chrome Plated Hinges for 1" square edge pilaster and Bumper Keeper and Slide Bolt latching. Available for the following door opening widths (actual door size is 3/8" narrower that the opening) - 22, 24, 26, 28, 30, 32, 34, 36". Specify - Part # 9TDL-XX (where XX is door opening width) Pilaster type - Standard Square edge.

Global Plastic Laminate color chart

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left
swinging doors. Closer meets ADA requirements.

International Door Closer 520 Main Arm

International Door Closer part # 520

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

LCN 4110 Fusible Link Door Closer

Standard 4110 series closer shipped with Fusible Link arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 FL

Partition Door Stop 2" Projection

Chrome plated Zamac die cast construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

Flush Metal Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Norton 7700 Series Power Track

The Norton Power Track Closer-Holders combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series Door Closer. The track assembly contains an arm slide and solenoid operated hold open mechanism and is available with or without an integral smoke detector. The closer is mounted on the door. The Power Track and hook-up box are mounted to the frame face for pull side installations or the frame soffit for push side installations.

Two versions, the Master Unit (PTDO) and the Support Unit (PTO). The PTDO has an integral smoke detector. The PTO can be plugged into the PTDO or into your existing fire alarm system. Both units can be mount pull side of the closed door, or the push side, please specify when ordering. Specify voltage (24 volt or 120 volt) and color (aluminum or dark brown). Dark Brown is a 3 week lead time, Aluminum is in stock.

The PTDO Master Unit is no longer available, they were discontinued in the 2024.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1

Standard 3030 series closer shipped with regular arm and wood and
machine screw pack. Sized cylinders for interior doors to 4’0”.
Handed for right or left swinging doors.
Closers to meet ADA requirements.

We ship the 3031 REG

LCN Door Closer 1450 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 8000 and Yale 3000 Series Door Closers.  It features, a cast aluminum cylinder, 3/4” x 12” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of this page.

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Hadrian Wall Mounted Privacy Screen's in powder coated are available in 48" heights by 18" or 24" wide. Standard chrome brackets are included. Wall hung screens are great for between urinals or a sink and urinal. The colors that are marked with an astris or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Accurate Partitions Laminate "U" Trim Door Insert for Top or Bottom 1" Door

Chrome plated Zamac die casting construction. Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.

also known as 9G631B, manufacture part # 1680

Hadrian stainless steel corner bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian stainless steel free standing bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

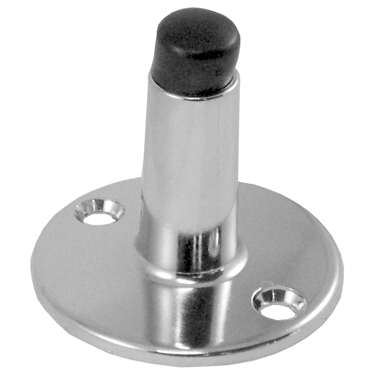

Partition Door Stop 2" High Cast Stainless Steel

Cast stainless steel construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4123.
