Wall Mounted Door Holder / Stop WS20

• Constructed in cast brass or aluminum.
• Replaceable rubber bumpers feature off-set shoulder and threaded shank
  that screws into body of holder.
• Hinged strike furnished matches body material and finish.

Furnished wood screws for drywall mounting.

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

LCN SEM7810-514 Coupler Assembly Kit

Corbin Russwin Hold Open Arm

Friction hold open arm.

Corbin Russwin part # 688F77

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

Corbin Russwin Door Closer 2800 Regular Arm

Used on almost all of your Corbin Russwin door closers since the 1970's.

Part # 688F95

Flush Metal Partitions Bottom Door Insert For 7/8" Door

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Replacement Rod for the LCN 4630 Door Closer, LCN Part # 4630-82

Push Plate 70

.125" thick with 4 beveled edges. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. This would be considered a premium push plate.

Finishes

Glynn-Johnson 100 Series Overhead Door Holder Concealed Mounting

Glynn-Johnson 100 series holders and stops provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often
used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

Partition Top Hinge Door Escutcheon For 7/8" Thick Door

Chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.

Glynn-Johnson 90 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 90 series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

Norton and Yale Hold Open Loop Assembly

This part is the part that always breaks on the Norton and Yale Friction Hold Open Arms. Cast Iron Construction, powder coated to the desired color.

Norton Part # 7701-13
Old Norton Part # 1620-13
Yale Part # 400-13

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

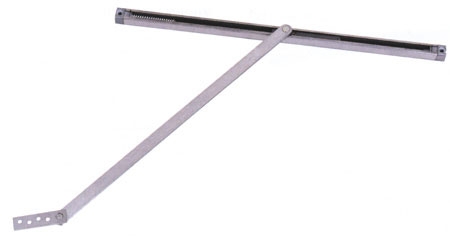

Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting

The perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

International 7300 Rim Device

Modern flat touch bar Rim Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

4" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-4 has a door-to-floor clearance of 2" or less.
• Packed with sheet metal screws.

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Scranton Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

Corbin Russwin Hold Open PA Bracket

Corbin Russwin part # 509F49

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 70 and 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Glynn-Johnson 450 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 450 series holders and stops provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The Glynn-Johnson 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

The 450 Series replaces the older GJ360, GJ370 and GJ380 Series.

GJ450 Catalogue

The TH1300 YKK Offset Pivot Set is commonly found on YKK aluminum framed storefront doors. This is not the only one they use, but the only one we can get.

LCN Door Closer Parallel Arm Shoe

This is the shoe that LCN uses on some of there door closers for the parallel arm mounted door closers. A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Standard 4110 series closer shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 EDA

Handing diagram

Yale 4400 Door Closer

• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Staked valves
• Standard, separate and independent, latch, sweep and
  backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°,
  conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

2-3/8" x 6-3/4" hole spacing. This door closer replaces the 4400BF. This newer version is Barrier Free Compliant.
