Doors

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only.

Cal Royal 5000 Rim Device

Grade 2
Heavy gauge steel construction, powder coated Aluminum color

Jackson 1085 Concealed Vertical Rod Exit Device

Jackson 1085 Series Exit Device is universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.
Non Handed
Comes with 45" cross bar that is easily cut in the field, includes all screws, strikes and concealed vertical rods.

Replacement parts are available, in stock!

Jackson 1095 Series Rim Exit Device is universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.
Specify Hand Handing diagram
Comes with 45" cross bar that is easily cut in the field

Replacement parts are available, in stock!

1285 Series exit device blends the reliability of the 10 series with the sleek, contemporry style of the today's push-pad exit devices. Easy to retrofit existing 10 Series exits. Made of extruded aluminum.

1295 Series Jackson exit device blends the reliability of the 10 series with the sleek, contemporry style of the today's push-pad exit devices. Easy to retrofit existing 10 Series exits. Made of extruded aluminum.

Jackson 2085 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

Monarch 19-R Exit Device

Hand: Non-Handed.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

Monarch 19-V Exit Device

Hand: Field reversible.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Top stainless steel 3⁄4" throw. Bottom square bolt 1⁄2" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 13⁄4" thick, wood or metal.
Narrow Stile Doors: To 1-3⁄4" N.S. aluminum. With control trim–2-1⁄4" min. stile.
Projection: 2-1⁄2" max., 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

Von Duprin 98 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed.

Ships with all the mounting screws and the 299 Strike.

1/8" Dog (hex) Key, used on Adams Rite and Cal Royal Panic Devices

1/8" Hex Key

1-13/16" ovall all length

also known as Hex Key, Dog Key, Allen Key, Dogging Key

3/16" Dog (hex) Key, used on Corbin Russwin Exit devices

3/16" Hex Key

2-1/4" overall length

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of aluminum

screw not included

Jack Nut 1/4-20

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Adams Rite Exit Device Dog Key

Adams Rite dog key, used on older Adams Rite Exit Devices.

Plastic Construction

Adams Rite part # 25-0480

also known as Hex Key, Dog Key, Allen Key, Dogging Key

Adams Rite dog key, used on older Adams Rite Exit Devices.

Plastic Construction

Adams Rite part # 25-0480

Adams Rite Dogging Assembly

Adams Rite Part # 31-0265

Adams Rite End Cap

On this Adams Rite End Cap we sometimes find the number HX0471 cast into the Black Plastic construction.

Adams Rite Part # 25-0471

Sargent 20/30/60/80 Dogging Assembly

We only sell the dogging assembly parts as a complete set. This Dogging Assembly Kit is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Exit Devices. This dogging assembly kit has been around since the 1980's.

Sargent part # 68-2596

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

Sargent 60/80 Push Bar Pins-Short Pin

Also known as the push bar axle, this is the pin that you see on the push pad.

1-9/16" LONG

Sargent part # 68-0229

Sargent 60/80 Push Bar Pin Retaining Clip

used on Sargent 60 and 80 series to retain the push bar and channel axles. Use with the 68-0229 and 68-0230.

Sargent part # 01-0098

Sargent Exit Device Lever Return Spring

This spring is used on Sargent Lever Trims for there Exit Devices.

2-1/8" LONG

Sargent part # 97-0425

Sargent 20/30/60/80 Connecting Arm Spring

Push Bar Return Spring

Sargent part # 68-0236

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Jackson 1085/1285/2086 Top Bolt Guide Assembly

1-1/2” deep x 1-1/16” wide x roughly 1” tall

Jackson Part # 30-934

Jackson Exit Device 1085/1285/2086 Bottom Bolt Guide Assembly

Jackson Part # 30-320

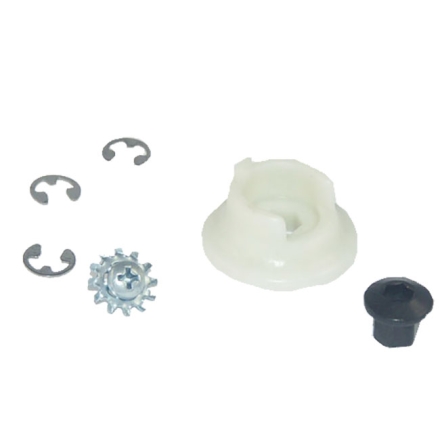

Jackson 1085 and 1095 dogging pin. Includes everything shown in picture.

Jackson part # 30-1115

Jackson 1085 Body Package

Includes everything shown in picture.

Jackson part # 30-1409

Jackson Exit Device Mounting Stud 1085/1095

The treaded part of the Jackson Mounting Stud has a 1/4-20 thread.

Yale 2100 Series Dogging Assembly

yale Part # 60-2100-1001-999

Yale 7000 Exit Device Dogging Assembly

Dogging assembly uses a 5/32" dog key

Yale Part # 60-7000-406-999
Sometimes call the 60-7000-0406-048

Jackson 1095 Gear Package

Jackson part # 30-852

Jackson Offset Arm package. Includes arm, track and mounting screws

Jackson Part # 20-900-LC

Jackson Door Closer Offset Arm Package

Includes arm, track and screws

Jackson part # 20-1134-LC

Jackson Offset Arm Package. Includes arm, track and mounting screws

Jackson part # 20-1312-LC
