Door Hardware

Half Mortise 4-1/2" Door Hinge-Box of 3

Steel construction, five knuckle, two bearing, square edge, Half Mortise 4-1/2" Door Hinge.  Sold in boxes of 3 hinges, ships from California.   Available in Brushed Chrome and Paint Primed (gray).

Full Surface 4-1/2" Door Hinge-3 per box

Full Surface, steel construction, five knuckle, two bearing butt hinge.  Sold 3 in a box with wood and machine screws.   Available in Brushed Chrome and Paint Primed.  Ships from California.

Half Surface 4-1/2" Door Hinge-Box of 3

Steel construction, five knuckle, two bearing, square edge, Half Surface 4-1/2" Door Hinge.  Sold in boxes of 3 hinges, ships from California.   Available in Brushed Chrome and Paint Primed (gray).

• For heavy weight doors
• High frequency usage
• 4 ball bearing
• Packed with wood and metal screws

Sold in boxes of 3 Hinges
Shown in brushed chrome

• For medium weight doors
• Medium frequency usage
• 2 ball bearing
• Packed with wood and metal screws

Sold in boxes of 3
Shown in brushed chrome

• For standard weight doors
• Low frequency usage
• Packed with wood and metal screws
Not for use with a door closer.

Sold in boxes of 3
Shown in brushed brass

• For automatic closing of doors
• Packed with wood and metal screws

This hinge is not recommended for doors that have a sweep larger than 110 degrees.

Sold in Boxes of 3 Hinges
Shown in brushed brass

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-20 tread on knob and spindle.

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

Heavy duty knob set. Replaces the Corbin #1419 with #32 spindle.
Outside knob is pinned to spindle and inside knob is held by
two 5/16" case hardened set screws. Spindle is on 3/8" diameter
center on outside half and inside spindle is threaded 3/8-20

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

3-1/2" straight spindle thread is 18 tpi. 2-1/4" knob

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

The reinforcing pivot hinge is a good way to solve door sag issues. And also be a preventative solutions for future isses with extra heavy or wide doors. The hinges comes in two sizes 4 or 4.5 inches, and two finishes, prime coat and satin chrome. The hinge uses a heavy duty ball-bearing to add extra life.  The base metal is steel.

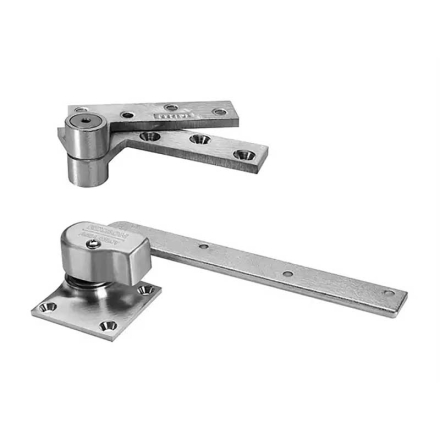

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

3-1/2" straight spindle thread is 16 tpi. 2-1/4" knob

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram

Exterior or Interior Doors
Weight to 600 lbs.*
Exterior Door Width up to 3'0"(914mm)
Interior Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'0"(1219mm)
Includes 180 top pivot
Handed

Handing diagram

Exterior or Interior Doors
Weight to 500 lbs.
Door Sizes up to 3'8"x 8'6"
Includes 340 top pivot
Non-handed

• Standard top pivot for heavy-duty offset
pivot sets
• Heavy-duty needle bearings are standard
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Handing diagram

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

Handing diagram
