Dor-o-Matic retaining ring. Used to retain the concealed vertical rods.

Doromatic part # RRING.109

1/2" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990/2090 Set Screw. This set screw goes thru the housing to secure the housing on the mounting studs.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1690 Retainer Screw.

Doromatic part # SCREW.1074 or PB141

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

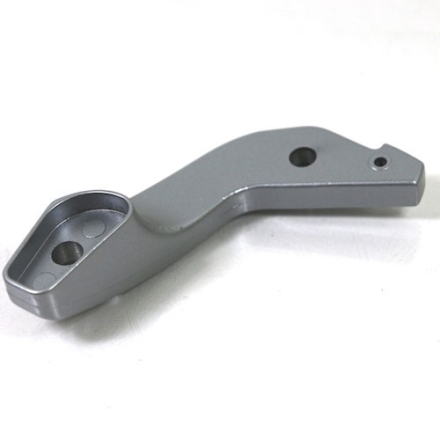

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Doromatic 2090 / 1090 Back Plate Sub Assembly

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

Dor-o-Matic 1490 RHR/1590 LHR Push Label
4-7/8" x 1-7/16"

Doromatic part # 4270107321 or PB212 Black-No longer available
Doromatic part # 4270107320 or PB214 Gold

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

No longer available

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877
