Accurate Top or Bottom Hinge
Partitions Toilet Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.
9HAP10 -
Accurate Bottom Hinge Flat Mount Chrome
This is used for a flat wall surface mount. Chrome plated Zamac. A=1-1/2". Also known as 3210. 3/8" diameter hole. Used with Accurate Partition doors prior to January 2013.
9HACLFCB -
Accurate Partition Steel Panels
Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.
9TPSXXA -
Global Top Hinge For Flat Surface Stainless Steel
Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0203 -
Global Top Hinge For Flat Surface
Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0202 -
Accurate Keeper Bumper for Outswing
Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.
9HAP23 -
Accurate Top and Bottom Hinge
Accurate Partitions Top and Bottom Hinge for 1-1/4" Round Post
chrome plated
used on Accurate Metal Partitions for mounting on a 1-1/4" thick round edge pilaster.
Accurate part number 50-8517300 and 50-2517200 and 50-398660. Security screws included.
A= 1-1/2", Used prior to January 1st 2013. There is no exact replacement hinge that will work.
**Not Available anymore, see link for new doors
9HAH15 -
Global Bottom Hinge for Flat Surface Mount
Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0201 -
Accurate Standard Turn Latch with Screw
Accurate Standard Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513300. Chrome plated finish.
This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.
9HACL80 -
Accurate Partition Hinge Pin for Laminate
Accurate Partition Hinge Pin for Laminate Hinge Pin 3/8" Diameter X 3-7/16" Long
Knurled steel construction. Hinge pin is 3-7/16" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.
9HAP30 -
Global Bottom Hinge for Flat Surface Mount Stainless Steel
Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0204 -
Accurate SS ADA Turn Latch with Screw
Accurate stainless steel ADA turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263350. Cast stainless steel finish.
This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.
9HACL85SS -
Accurate ADA Turn Latch with Screw
Accurate ADA Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513350. Chrome plated finish.
This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.
9HACL85 -
Accurate SS Standard Turn Latch with Screw
Accurate stainless steel standard turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263300. Cast stainless steel finish.
This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.
9HACL80SS -

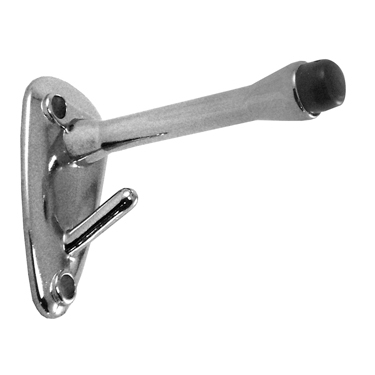

Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High
Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High Chrome Plated
Chrome plated Zamac construction. Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.
Same as 9OT285, 9HA426
9G0160 -
Accurate Top Hinge Flat Mount Chrome
This is used for a flat wall surface mount. Chrome plated Zamac. A=1-1/2". Also known as 3710. White plastic insert included. 1/2" diameter hole. Used with Accurate Partition doors prior to January 2013.
9HACLFCT -
Global Complete Hinge Set with Rounded Edge
Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.
9G663140
