Global Partitions Plastic Laminate Door Kit For 1"
Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructionsChrome inswing 8512013
Chrome outswing 8512014Stainless Steel Inswing 8262013
Stainless Steel outswing 82620149G -
Accurate Door Hinge Kit
Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.
9A63160 -
Accurate U Trim Door Insert
Accurate Partitions Laminate "U" Trim Door Insert for Top or Bottom 1" Door
Chrome plated Zamac die casting construction. Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.
also known as 9G631B, manufacture part # 1680
9HAP15 -
Global Partitions Solid Plastic 8" Wrap Door Kit
Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.
Inswing Door Kit: 40-8441007
Outswing door Kit: 40-8441008
9G844 -
Accurate Door Kit Chrome Plated
Accurate Door Kit Old Style, Used January 1-2013 to September 2021. This door kit includes all you see and the security screws. Also known as 50-8511505. Chrome Plated.
These hinges will not replace previous version of Accurates old style hinges that are no longer available.
9HACL505 -
Accurate ADA Door Kit Chrome Plated
Accurate ADA Door Kit Old Style, Used January 1-2013 to September 2021. This door kit includes all you see and the security screws. Also known as 50-8511515. Chrome Plated.
These hinges will not replace previous version of Accurates old style hinges that are no longer available.
9HACL505A -
Global Door kits Current Style
Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.
To order out swing version you must order both parts as pictures shown for complete door kit.
9A85 -
Accurate Partition Steel Doors
Accurate Toilet Stall Doors are easy to reinstall when replacing. All doors come with standard chrome door kit, with upgrades to stainless steel hardware. Accurate offers 20"-36" doors in even numbers only. All sizes are for the opening that you have. The doors are 3/8" narrower than the opening. Accurates door height for powder coated steel are 58" ht mounted 12" off the floor. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
9TDSXXA -
Global Partitions Solid Plastic Vault Door Kit
Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.
Inswing Door Kit: 40-8571007
Outswing door Kit: 40-8571008
9G857 -
Global Door kits Current Style : Stainless Steel
Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.
To order out swing version you must order both parts as pictures shown for complete door kit.
9A82 -
Global Partitions Phenolic Vault Door Kit
Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.
Inswing Door Kit: 40-8571005
Outswing door Kit: 40-8571006
9G85 -
ASI Headrail
ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).
Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.
Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.
9A84 -

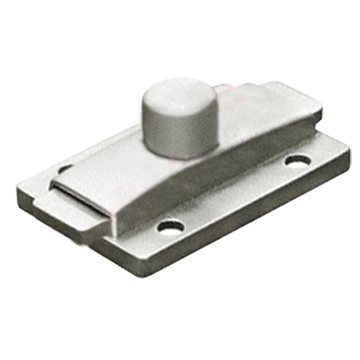

Cast SS Slide Bolt Latch, Hole Spacing 1-3/4"X1-1/2"
Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"
Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.
Shipped with mounting screws.
9A6983 -
Accurate Top and Bottom Hinge
Accurate Partitions Top and Bottom Hinge for 1-1/4" Round Post
chrome plated
used on Accurate Metal Partitions for mounting on a 1-1/4" thick round edge pilaster.
Accurate part number 50-8517300 and 50-2517200 and 50-398660. Security screws included.
A= 1-1/2", Used prior to January 1st 2013. There is no exact replacement hinge that will work.
**Not Available anymore, see link for new doors
9HAH15 -
Accurate Stainless Steel Between Walls
Accurates commercial stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
SSBWA -
Accurate Top or Bottom Hinge
Partitions Toilet Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.
9HAP10 -
Global Bottom Hinge for Flat Surface Mount
Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0201 -
Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High
Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High Chrome Plated
Chrome plated Zamac construction. Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.
Same as 9OT285, 9HA426
9G0160 -
Global Top Hinge For Flat Surface Stainless Steel
Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0203 -
Global Top Hinge For Flat Surface
Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0202 -
Global Bottom Hinge for Flat Surface Mount Stainless Steel
Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0204 -
Aluminum Pilaster Stiffener
Toilet partition Aluminum Pilaster Stiffeners for restroom stalls. The Pilaster Stiffener is constructed of extruded aluminum. Measures 3-1/2" wide by 75" length. Used to help stablize restroom pilasters that carry the weight of a door or alcove panel. Typically used on pilasters that are 8" and lager in size and that support a door of 32" and larger. Designed to help provide stability to the partitions structure my making the pilaster less likey to bend, warp and break. To be installed as close as possible to the edge of the pilaster that is closest to the door. Comes pre-drilled with 14 holes and comes with screws for mounting. Can be utilized with any manufacturer for partitions but sizes could vary. Commonly known as 40-8447334(Global/Accurate), CI-76STIFFENER(Scranton) and 627240(Hadrian).
9a8447 -
Accurate Stainless Steel Corner Stalls
Accurate toilet partitions in stainless steel in a corner commercial stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
SSICA -
Accurate Stainless Steel Free Standing Partitions
Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
SSFSA -
Accurate Keeper Bumper for Outswing
Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.
9HAP23 -
Accurate Keeper Bumper for Inswing
Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.
9HAP27
