Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Chrome Plated Keeper Bumper For 1-1/4" Inswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 1-9/16" high by 5/16" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5310

Shipped with mounting screws.

Toilet partition continuous aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

Partition Keeper Bumper Inswing 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5113.

Shipped with mounting screws.

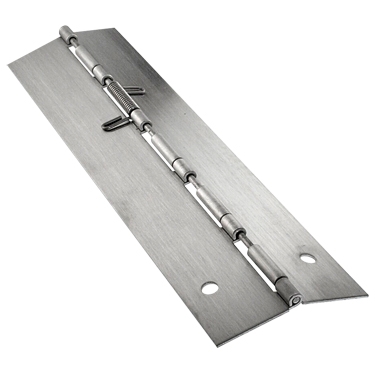

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Flat Style Table Stool Tops-Universal Fit. Made of heavy duty HDPE Plastic. The Stool Tops are shipped with Stool Top, and Fasteners. The Stool measures 12-1/2" diameter and is 15/16" thick. The hole spacing is 5" x 5" on center in a square pattern. Flat Style Stool Caps are Available in Black, Burgundy, Charcoal, Dark Blue, Royal Blue, and Red.

Toilet Partition Continuous Hinge 54" With Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130209, 7599, 125319, 650-9402. This hinge is known as 7599.

GU Casement Sash Lock

Die Cast Metal and Plastic construction Multi-Point Locking Handle. The base measures 4" tall by 3/4" wide with a 3-5/16" hole spacing.

White only

Pressure sensitive 5"x4-1/2"ht international handicap symbol white on blue.
(Sticker)

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

The 2½" Aluminum Bleacher Clip is also known as Part #P2041U.

The 2½" Aluminum Bleacher Clips feature grooves 2-1/8" for the outer groove and 1" apart are the inner grooves. This clip replaces the 2-1/8" smaller version clip. You would use the outer and inner groove to make 1-3/4" between grooves. The 2½" Aluminum Bleacher Clip package includes a bolt and nut which are zinc cadmium plated.

Make your bleachers safe and secure with the reputable 2½" Aluminum Bleacher Clips. The durable 2½" Aluminum Bleacher Clips are designed to securely fasten bleacher seats to the supporting structure, ensuring safety and stability for spectators. Installation involves a quick setup and adjustments as needed. Each 2½" Aluminum Bleacher Clip is engineered to withstand heavy use, providing peace of mind during events. Made from high-quality aluminum, 2½" Aluminum Bleacher Clips hold up against rust and corrosion, making them ideal for both indoor and outdoor use. Whether you are managing a sports facility, school auditorium, or community center, the Aluminum Bleacher Clips 2½" are an essential component for maintaining the integrity of your bleacher system.

In addition to regular inspections, it is important to stay educated about the proper use and maintenance of the bleachers with information and/or training to help ensure that all staff understands how to operate the bleachers safely and effectively. Encourage your team to report immediately any replacements needed—whether it's loose 2½" Aluminum Bleacher Clips or damaged boards—so that repairs can be made promptly. We recommend keeping a maintenance log to track inspections and repairs for your bleachers. This can help you stay organized and ensure that nothing is overlooked. Regular maintenance not only enhances safety but also improves the overall appearance of your bleachers, making them more inviting for spectators.

For more information on specifications of the Aluminum Bleacher Clips 2½", please feel free to contact our customer service team. We can help you choose the best replacement part for your bleachers, whether it be the 2½" Aluminum Bleacher Clip or another product.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

Roto Pro Drive Folding Handle

The Roto Pro Drive Folding Handle features die cast construction, and powder coated finish.   The hex is 5/16", and the handle has a overall length of 4-1/4".

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

Toilet partition continuous aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

Partition Keeper Bumper Inswing 3/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 4903.

Shipped with mounting screws.

Partition Keeper Bumper Inswing 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 1". Manufacture part # 5823.

Shipped with mounting screws.

Chrome Plated Heavy Duty Partition Ada Throw Latch And Keeper

Polished chrome plated brass construction. Latch base is 2" x 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.

Shipped with mounting screws.

Heavy Duty Toilet Partition Gravity Hinge Set Lh Outswing, Rh Inswing Stainless Steel see diagram

1/8" thick stainless steel construction. 1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7052.

Includes all screws.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Door Stop Pilaster Mounted Polished Stainless Steel

Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Partition Keeper Bumper Inswing 1" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. The slot is 5/16" deep by 1-1/2" high. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing 1". Manufacture part # 5623.

Shipped with mounting screws.

Door Pull 4" Centers Chrome Plated. Chrome Plated die cast handle. 4-3/8" wide x 7/8" projection, also known as 9a0171.

projects 1-3/4", 1-3/8"ht

Two Hole 1-1/2" Plastic Handle

Constructed of high density plastic with an 1-1/2" hole spacing. The lock up dimension is 3/8". The base measures 2-1/8" x 7/8". The handle measures 3-1/2" long.

The white is instock, the beige has a 1-3 week lead time.

Locker Number Plates fits most lockers except Lyon. Make sure to add what numbers you are looking for. 1-600 in stock. Pop rivets included. Overall size 2-5/16" x 1-1/16". Manufactured in the USA. Also known as 99001, 70072, bu0110, lu122. Hole spacing 1-3/4".

Note: Blank number plates are available and in stock, with no numbers on them. Each number plate you need is quantity one. Ten plates equal qty 10 for ordering.

*** Note we only sell 1-600, no special orders. ***

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759
