Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

FEATURES

• Please note the factory will only sell in quantities of 10.
• Large, all-steel ADA Compliant User Paddle Key for ease of access
• Ergonomic dial with grip ring and non-slip coating
• Nut channels for easy installation
• Fully retracting automatic spring latch with standard 5/16” bolt
• 7 pre-set combinations for extended usage
• Supervisory key control
• Includes 2 User Keys
• Nut channels for easy installation
• Automatic locking
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available


APPLICATIONS

• Fits all standard single point or box lockers
• Model 1955ADA is for use with locker door hinged on left

The Monarch 19-V Series Latch Cover is made of impact resistant black plastic.   The Monarch 19-V is now known as the Falcon 19-V.  The manufacture part # is 650388.

FEATURES

• Please note the factory will only sell in quantities of 10.
• Ergonomic dial with grip ring and non-slip coating
• Fully retracting automatic spring latch with standard 5/16” bolt
• 7 pre-set combinations for extended usage
• Supervisory key control
• Nut channels for easy installation
• Automatic locking
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available


APPLICATIONS

• Fits all standard single point or box lockers
• Model 1955 is for use with locker door hinged on left; similar in operation to Master Lock 1655

Penco Locker Two person Latch Bar used 1970-1984. also known as 60860c.

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

The All American Partition Latch Knob and Cover is used on All American Metal Corp 1" thick metal doors.  The inner and outer knob are included in the package.  The manufactures part number is 104.

EM C Type Receptacle

Receptacle - Nickel-plated steel slides on hanger rods up to 1 3/8" dia.

Materials: Steel - Nickel Plated

EMCO

Medart Locker Handle Assembly for a Left Handed Locker with hinges on the left facing them. Handle Assembly includes Case, Lift and 1 screw. Also known as 50102, 1001, 80028, me5501, lmd905.

General Ada Concealed Latch Cover Knob w/ Offset Pin

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The ADA Barrier Free Lever is 3-3/4" long. The off set pin has a diameter of 11/32" and 2-11/16". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 8190. Typically used with powder coated steel toilet partitions.

Republic Steel Locker Handle #11 Assembly Left Hand. Comes with lift,case and screws.Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965. Also known as 70108, 2045, 70036, rs11108, lr307.

The Command Access MLRK-VD Motorized Latch Retraction is for use on the 33,35, 98 or 99 Von Duprin Exit Devices. This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty

Concealed Latch Keeper Bumper Inswing For 1-1/4" Square Edge Post Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5983

Shipped with screws for mounting.

The Stainless Stel Indicator Latch and Keeper are designed to work with for 1" doors and 1-1/4" pilasters thickness. Constructed of stainless steel with a brushed finish. Comes fasteners for installation. Known as manufacturers part numbers 905200,910128 and 910129.

The Emco R1 Wall Rack system is perfect for hotels, restaurants, churches and schools. It is easy to install and built to last.  They project 12-1/8" from the wall and the support brackets are 12" high and 1-7/16" wide.  The slats measure 3/4" by 1" rectangle with a wall thickness of .062" and are constructed of extruded aluminum and have plastic end closures.  The mounting brackets are made of cast aluminum that is powder coated black.  For the slats we have the option of Silver Anodized Aluminum or Bronze Acrylic Coated Aluminum.  We show the more popular sizes on the website, but we can get these up to 50' long.  Manufacturer will use slip joints so the rack can ship UPS/FEDEX.  Hangers are not included.

Von Duprin 8827-F/47-F Soffit Latch Kit

This component fits into the header and is used the Von Duprin 5547-F, 8827-F and 8847-F

Von Durpin Part # 114141
Old Part # 102930

The Adams Rite 31-0619 is the Circuit Board that controls the Motorized Latch Retraction on the 8000 and 3000 Series Exit Devices. It is also known as the PCBA: SE Main (Black).

Picture coming soon!

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Toilet Partition Keeper For Throw Latch Inswing Flat

Polished chrome plated Zamac construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5180.

Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5233.

Shipped with mounting screws.

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Concealed Partition Latch Keeper Bumper For 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5243

Shipped with mounting screws.

The Command Access MLRK1-FAL17 Motorized Latch Retraction Kit With REX is for use on the Falcon Dor-o-matic 1690/1790, AHT4/5, and First Choice 3600/3700 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-FAL17 is a cost-effective and straightforward way to upgrade your Falcon 1690/1790, First Choice 3600/3700, & AHT 4/5 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Global Partition compartments In A Corner Stall. Powder Coated Metal Overhead braced floor mounted stalls is most used. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60"depth (ADA 36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integrated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.

Medart Locker Handle Assembly for a Right Handed Locker with hinges on the Right facing them. Handle Assembly includes Case, Lift and 1 screw. Also known as 50101, 1001, 80027, me5501, lmd904.

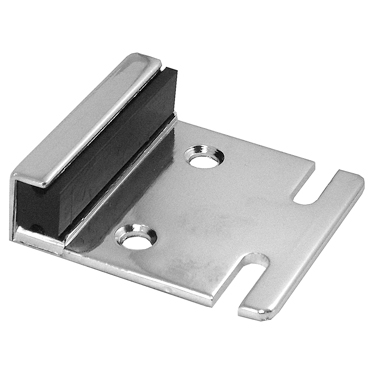

Chrome Plated Partition Keeper Bumper For Throw Latch Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5280

Shipped with mounting screws.
