INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615350.

LCN 4040XP Hold Open Door Closer

The same 4040XP Door Closer with the Hold Open Arm arm 4040XP-3049.

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Hw/PA

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

Glynn-Johnson 90 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 90 series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

Door Pull 4" Centers Chrome Plated. Chrome Plated die cast handle. 4-3/8" wide x 7/8" projection, also known as 9a0171.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

International Door Closer T1 Push Pull Mounting Screw is used PH-4000, PB-2000, and PP-2000.  The screw measures 2-9/16 inches long, with a 3/8 inch diameter and 18 threads per inch.

Handicap Door Pull 119

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

Stainless Steel Folding Utility Shelf 14-5/8"X5-13/16"

Shelf: Fabricated of #18 ga stainless steel with a #4 satin finish. Leading
edges are radiused and deburred to prevent injury.
Mounting Bracket: Fabricated of #14 ga stainless steel finished to match
shelf. All edges are deburred and have a radius.
Spring: Heavy duty internal spring will allow shelf to return to the up-right
position when not in use.
Overall Size: 14 5/8”L x 5 1/2”W

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

Finishes

The Aluminum Flag Wall Bracket 1/2 inch and 3/4 do not have thumb screws. This flag pole bracket Displays pole and flag at a 45 degree angle.

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

Door Pull 24

This door handle features a 6" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
6" centers
8" overall
3/4" base diameter
2" projection

Finishes

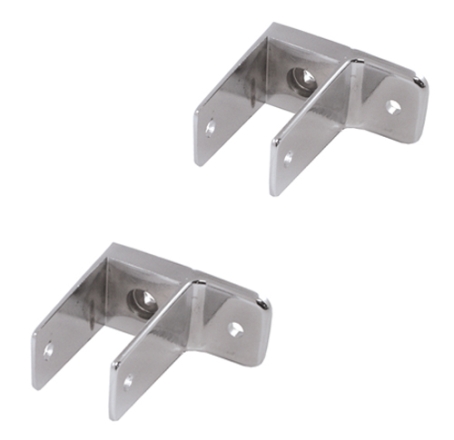

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615810.

General Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Handicap Door Pull 19

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

One Ear Pilaster Bracket Kit for 1" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615250.

The Russwin 100, 110 and 120 in no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

The Rixson 998 and 997 Magnet Assembly and Bracket is the replacement magnetic coil for the 998 and 997 Rixson Electro Magnetic Holders.

Rixson Part # 998369

Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

Heavy Duty Locker Door Knob for Two Person Locker upper doors, includes 703208 Screw. Also known as 70080, bu0113. 1" diameter x 7/8" height.

Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

Von Duprin 22 Replacement End Cap and Bracket.

The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.

Von Duprin part # 900981

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

International Door Closer 300 Series Adjustable Power

UL Listed, Barrier Free Operation to Comply with Federal Accessibility Standards (ADA) ANSI A117.1.   Spring Power adjustable for a range of sizes from 8-1/2 lbs t Medium Spring Tension, fully adjustable after installation.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

The International 8000 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

International Door Closer 9001 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 1 through 6 (adjustable after installation)
3. Precision cast aluminum housing with forged steel arm
4. Stable hydraulic door check fluid for any climate operation. Using a fire resistant oil with an
operating range from -43.6°F (-42°C) to 140°F (60°C)
5. Standard sweep and latch speed
6. Standard adjustable backcheck or without backcheck
7. Two speed control valves allow closing and latching speeds to be controlled by separate
valves; fully adjustable after installation
8. Standard Tri-packed for regular arm, top jamb and parallel arm application
9. Numerous accessories are available to allow for special installations or adaptability
10. Finishes available in Aluminum (AL) and Duronodic (DU)

3/4" X 11-3/32" Hole Spacing

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.
