Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

Single Right Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Safway Bleacher Wheel 5/16" X 5/8" x 1-5/8".

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The Aluminum Vinyl Door Shoe constructed of extruded aluminum and black vinyl.  This shoe is sold in 36 and 48 inch lengths and comes with #6 x 3/4 inch stainless steel sheet metal screws.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

Handing diagram

Detex EAX-300 Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Moritse Cylinder is not included
Powered by a 9 Volt Battery

Detex EAX-300 Installation Instructions

Shower Curtain - 10 Ga. White Vinyl, Order 8 Hooks Separately - 48"W X 72"H

Flame-resistant, anti-bacterial, 10 gauge white vinyl fabric with standard height of 72". Curtain should be 6" wider than opening up to 54" and 12" wider than opening exceeding 54".

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Known as 10-1200-V48 by American Specialties.

Push Plate 60

8" x 16" x .050

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock just prevents theft.

Gravity Door Coordinator

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

Durabilt Locker Door Jamb.

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

Right hand or Left hand, prior to 1972.

actual size 15-3/4"x7-7/8"

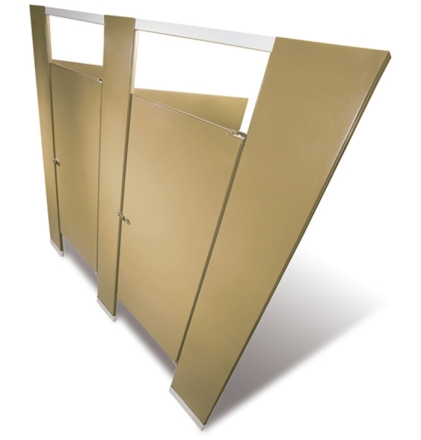

Hadrian Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting

The perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

Corbin Russwin DC8210 Door Closer
Applications
High-quality products and innovative designs are the foundation for the long
history and reputation of Corbin Russwin Architectural Hardware. That tradition
continues with the Grade 1 DC8000 Series door closer, the perfect choice for
high-use openings and doors that must meet ADA requirements. A variety of
arms, finishes and quality features make the easy-to-install DC8000 ideal for
schools, office buildings, health care facilities and retail complexes.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

Bobrick Partitions Pintle 5/8" Diameter

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Toilet Partition Continuous Toilet Partition Hinge 54" With Spring Close Stainless Steel, Rh Outswing, Lh Inswing

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacturer part # 7969.

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

Right hand or Left hand, 1972 to present.

actual size 15-3/4"x7-7/8"

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.

Double Door Latch for doors without a center post. Shown without optional lock. Lock prevents theft.

Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Door Stop Pilaster Mounted Polished Stainless Steel

Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Ives Wall Mounted Door Holder WS40

• Constructed of sturdy cast brass, or aluminum.
• Holder is mounted on wall and strike is mounted on door.
• Roller on holder rides up seats itself on strike, with a heavy duty bumper
  pad deadening the sound and shock.
• Universal screw pack accommodates all types wall construction.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws
