New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

Flush Metal Partition Concealed Ada Latch Knob Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150

Sanymetal Partitions Keeper Bumper And Strike For Concealed Latches Inswing/Outswing 1-1/4"

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4" This Strike and Keeper are for square post or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960

Shipped with screws for mounting.

General Partition Concealed Latch Knob & Cover

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42 or 1001492 includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

Von Duprin 33/3547 98/9947 Compression Spring (10)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 10.

Von Duprin Part # 090066

Global Ada Latch Knob & Cover, W/ Screw Chrome Plated, also known as 40-8513370g. This was used up until October 2021.

Yale Upper Latch 60-7220-0066-048 for use on the 7220 Narrow Stile Concealed Vertical Rod.

Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.

Shipped with mounting screws.

A=1-9/16"

4" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made

Made by Grand Specialties

Zinc plated steel or Brass plated

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Window Spring Latch.

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Flush Metal Partitions Concealed Latch Housing

Zamac die cast construction. The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

Medart Bleacher Latch Bracket Left Hand. 2" Hole Spacing.

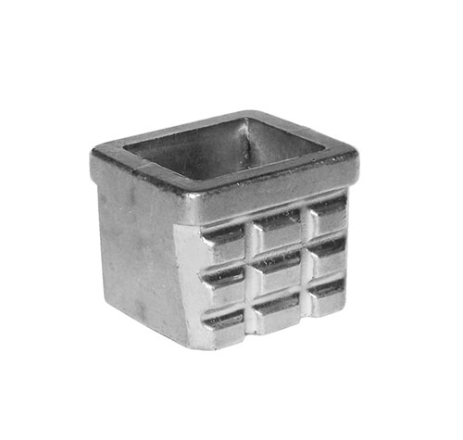

Monarch Falcon 2130 Bottom Latch Strike

The Monarch Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

Hadrian's new style 7/15/19 Partition Ada Latch Knob includes the turn latch wit set screw and cover. The latch is ADA compliant and meets barrier free codes.  They are constructed of die cast stainless steel that is then a brushed finish. This part is used on Hadrian Partitions and will replace the old style concealed turn latch.  The new manufacturer's part number is 901150, but also associates with old parts and replaces 601100-700, 601110-700, 601200-700. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Corbin Russwin ED4400/5400 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64

ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).

Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.

Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.

ASI Alpaco Ada Indicator Latch is used by Accurate and Global Partitions. This European design is featured on the Alpaco Classic and Elegance Collection. Stainless steel construction make this indicator latch durable. These latches are created to be used on 3/4" thick material. Red and White indicator is used to show whether the stall is in use. Offers emergency access fom the outside with coin slot feature. Also known as 8273100.

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

The Global Partitions stainless steel latch knob & cover with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished. The manufacturer part number is 40-8263380. This was used up until October 2021.

General Top Hinge Pin 3/8"Dia x 3-3/4" L

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Accurate Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.

Shipped with screws.

Used by accurate and global.

Accurate ADA Turn Latch & Cover

also known as 50-2511390, 50-2511370, 50-8511579, 50-8511510 complete. Chrome Plated. This latch assembly was used prior to January 2013. There is no exact replacement available.

This old style lock is discontinued 1/1/2022.
See link for replacement kits
https://www.robertbrooke.com/bathroom/partition-parts/conc-latch-fix-it-kit.html

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Interior Steel Equipment Locker Nylon Latch Finger. Also known as 30501, 3244, 76017, is4407.

Republic Steel Locker Handle Latch Spring only. Also known as 71505, 2565, 70016, rs1117.

Single Prong Locker Hooks for school type lockers. The hook is made from a metal 3/16" diameter tube x 3-1/4" ht x 2" width. These locker hooks are wall mounted to the locker back or sides. The hole spacing is 3/4" or 1-1/4", the top hole is 1/4" round with the two lower as 3/8" slots. Also known as 9010, 81006, bu0111, lu126, 8697.

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown
