1-1/4" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

Fiat Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Global Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart

The All American Partition Latch Knob and Cover is used on All American Metal Corp 1" thick metal doors.  The inner and outer knob are included in the package.  The manufactures part number is 104.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Flush Metal Partitions Nylon Cam

White nylon construction. The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". Also known as a Bathroom Stall Cam. Manufacture part # 98275.

Ordering Online All Powder Coated Metal Stall Integrated Privacy Doors are Manufactured by Global Partitions. All toilet partition door's ship in 48-72 hours plus 2-4 days travel. Note 24",26",34" & 36 doors are quick ship, 20", 22", 28", 30" & 32" ship out in 1 week. Standard Chrome Plated hardware included. Chrome Plated ***New style slide latch door kit included.

Color Chart

Full length aluminum door stop for 3/4" material used with phenolic commercial toilet partitions or posts that are 3/4" thick. This product will help any gap from the front view of the toilet stall door on the latch side. For an out swing door the slide bolt latch locks onto the opposite side of the bumper. For an in swing door the kit comes with a simple stainless steel keeper that is mounted on the inside of the stall on the post for the latch to lock to. This kit is used for an inswing or an outswing door. The spec sheet is attached, the overall height is 53-1/2". The product is made by Global Partitions with part numbers 40-8454500 and 40-8262370.

The Matte Black Hadrian Headrail is constructed of aluminum and designed to fit over the top of a 3/4" Pilaster. Comes in lengths of 60", 74" and 96" and are able to be cut down to size needed. Headrails help provide stability for partitions. Known as manufacturers part number 670060-BLK, 670074-BLK, and 670096-BLK.

The 893 Hat And Coat Strip are available in 24", 36", 48" and 56". These are constructed of 18 gauge type 304 stainless steel, the hooks are constructed of 14 gauge stainless steel, both are finished to a #4 satin brushed finish.  The strip is 4" high by length and projects out 1/2".  The hooks are 1" wide by 6-11/16" high and project out 2-1/8", and have radiused ends to prevent injury. Manufactures part number is 1307 by American Specialties.

24" unit has 3 hooks.
36" unit has 4 hooks
48" unit has 5 hooks
56" unit has 6 hooks

Toilet Partition Surface Mounted Ada Slide Latch Set W/ Indicator

Stamped stainless steel construction. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6069. For 1" thick doors.

Shipped with mounting screws.

The Partition Privacy Covers, Great for Restroom Partition Door Gaps. Block's gaps between door and pilaster for both sides. Includes 2 per package, one for each side of door, 58" Tall.  The Cover is just under 2" wide with the clear rigid vinyl mounting strip being 7/8" wide, and the cover being 1-1/8" wide. This product ships in an oversize box ground. This product is not recommended for solid plastic partitions, HDPE or solid polymer material. This is great for powder coated steel, plastic laminate, stainless steel and solid phenolic materials only.

The informational and installation video are shown in the Description Tab below. In Stock for quick deliveries.

Ordering online all solid plastic (HDPE) pilasters manufactured by global partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Pilasters Include: floor mount hardware and Stainless Steel Shoes.Available for the following widths - 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24" x 82" ht for overheadbraced type.

Color Chart

ASI Headrail Retrun Kit is designed to work with Global and Accurate Partitions. Manufacturered to work with the new style headrails introduced in May of 2023 which are a lower profile than the previous models that are no longer available. The headrail retun kit will work with the 3/4", 1" and 1-1/4" thickness headrails from ASI. This kit includes (2) Brackets, (2) Wall Anchoring Screws, (2) Plastic Anchors, (4) Fastening Screws and (1) Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with ASI Headrail (9A84) Manufacturer Part# 40-8448100.

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

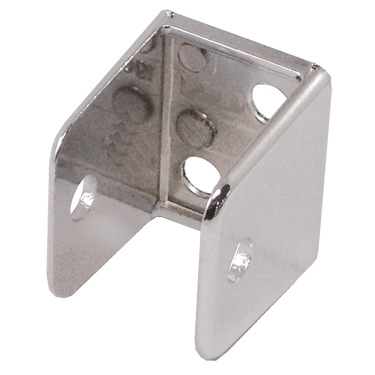

Chrome Plated "U" Bracket 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

Scranton Partitions 8" Wrap Around Hinge Insert Replacements. This kit includes the Top and Bottom insert replacements. Design works with other manufactures 8" Wrap Hinges. Known as HHINSERTST by Scranton Products/Comtec/Hiny Hider.

Ordering online all solid plastic HDPE for overhead braced privacy dividers manufactured by Global Partitions. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard aluminum brackets included. The kit includes 6"x82" pilaster, panel, headrail and all the hardware to assembly. This works great for a privacy near the main restroom door.
Color Chart

Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 70 and 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Global Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Bobrick Partitions Pintle 5/8" Diameter

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"

Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.

Shipped with mounting screws.

Accurate Turn Latch & Cover also known as 50-2511390, 50-2511380, 50-8511589, 50-8511500 complete. Chrome Plated. This latch assembly was used prior to January 2013. There is no exact replacement available.

This old style lock is discontinued 1/1/2022.
See link for replacement kits
https://www.robertbrooke.com/bathroom/partition-parts/conc-latch-fix-it-kit.html

Full length aluminum door stop for 1" material used with solid plastic commercial toilet partitions or posts that are 1" thick. This product will help any gap from the front view of the toilet stall door on the latch side. For an out swing door the slide bolt latch locks onto the opposite side of the bumper. For an in swing door the kit comes with a simple stainless steel keeper that is mounted on the inside of the stall on the post for the latch to lock to. This kit is used for an inswing or an outswing door. The spec sheet is attached, the overall height is 53-1/2". The product is made by Global Partitions with part numbers 40-8464400 and 40-8262370.

Metpar Partitions Bottom Cam Housing Chrome Plated

Chrome plated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060 Used with General, Metpar and Ampco

Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

General Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Partition Door Stop 2" Projection

Chrome plated Zamac die cast construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

Hadrian chrome plastic button for pilaster holes to cover them up on edge of pilaster. The hadrian partition pilaster has two holes on one edge of the pilaster for concealed mounting that uses a toggle and screw to mount the hinge. Used with metal and stainless steel pilasters and known as 607230.
