International Door Closer 8050

This closer is an ideal replacement closer for just about any Store Front Door. We recommend this closer because it will fit any size door, and you can adjust the spring tension to make it easier for the elderly, smaller children and the handicapped. This door closer will work on a Right or Left Hand Door, Push or Pull side or Top Jamb mounting, it ships with a parallel arm bracket, arm and mounting screws.

Length of Closer 9-3/4”, Horizontal Mounting Holes 9-1/16”, Vertical Mounting Holes 3/4”, Overall Height 4-21/32”, Height of Closer 1-21/32”, Projection from Door 2-29/32”, 4 Adjustments - Closing and Latching Speed, Power and Back Check.

We ship the 8051-TP DU or 8051-TP AL depending on the color you choose. This closer includes a full plastic cover

International Door Closer 855 Series-Discontinued.   If you order this door closer the 885 will be sent, it is the same door closer but also features back check.

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

International Door Closer 851 Series

FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular and parallel arm bracket

3/4" x 6-3/8" mounting holes

International Door Closer 852 Series
FEATURES

Two Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Shipped with regular and parallel arm bracket.

3/4" x 7-3/8" mounting holes

International Door Closer 854 Series

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top
jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

Plunger Type Door Holder / Stop 583

Solid Cast Brass with black rubber shoe. 5-3/8 × 2-1/4" Base 1-1/4" Projection 1-1/4" Throw.

Norton 7500 Apollo Door Closer

• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

We ship Norton 7501 which will work as a replacement for the 7501BF. This closer now meets ADA Handicap codes for Barrier Free Access.

Norton 8501 Door Closer, also known as the Norton 8501 Omni Door Closer, or 8501BF Door Closer.
We sometimes find 3301/3501 and 8301/8501 on the inside of the cover, along with the suffix BF (barrier free).

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This Norton 8501 replaces the 8501BF. This newer model now meets the ADA Barrier Free requirements.

Doromatic SC80 Door Closer

3/4" x 12" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching, Backcheck and Power Adjustments
Grade 1 Closer

We ship the SC81 Rw/PA

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Toilet partition continuous aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Norton 1600 Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

INTERNATIONAL DOOR CLOSER 1803 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1803

INTERNATIONAL DOOR CLOSER 1805BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1805BC

International Door Closer 9001 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 1 through 6 (adjustable after installation)
3. Precision cast aluminum housing with forged steel arm
4. Stable hydraulic door check fluid for any climate operation. Using a fire resistant oil with an
operating range from -43.6°F (-42°C) to 140°F (60°C)
5. Standard sweep and latch speed
6. Standard adjustable backcheck or without backcheck
7. Two speed control valves allow closing and latching speeds to be controlled by separate
valves; fully adjustable after installation
8. Standard Tri-packed for regular arm, top jamb and parallel arm application
9. Numerous accessories are available to allow for special installations or adaptability
10. Finishes available in Aluminum (AL) and Duronodic (DU)

3/4" X 11-3/32" Hole Spacing

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

International Door Closer 853 Series
FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular arm and parallel arm bracket.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Norton 1600BF Barrier Free Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Norton Door Closer 9300

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• Friction hold open arm optional
• UL listed and compliant with UL10C for positive pressure
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" Hole Spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

INTERNATIONAL DOOR CLOSER 1802 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1802BC

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Toilet partition continuous aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

1695mkada Master Lock, Built-in lock for ADA single point latch lockers designed for Wrap Around Latch Technology, automatic deadbolt locking, right-hand hinged door, with Master key enabling. Includes 2 student keys with ADA key head. Order Master Key separately.
ADA For Single Point Lockers. Spring latch locks automatically.
RH Only
1-2 week lead time

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

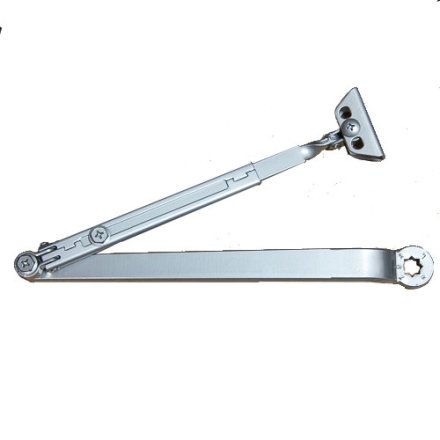

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1
