Non swivel glides for round tubing

1" outside diameter
7/8" inside diameter
1-1/16" base diameter
Nickel plated metal base

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

Square Plastic Chair Tips for Square Tubing chair leg with a 3/4" Outside Diameter X 5/8" Inside Diameter Legs. Square tips for a slanted leg chair. Available in Black.

Plastic Chair Tips for Square Tubing Chair Legs with a 1-1/2" Outside Diameter X 1-3/8" Inside Diameter Legs. Available in Black only.

Toilet Partition Bottom Hinge Assembly Chrome Plated For 1" Thick Door, 1-1/4" Pilaster Square Edge

Polished chrome plated zamac die cast construction. Kit includes Bottom Hinge, Pintle, Nylon Cam, and Bottom Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

Screws are also included.

The Swivel Glide 5/8" O.D. with Ferrule Outside Holding Clip Nylon Base is used on American Desk, Artco Bell, Carter Craft, Krueger, Peabody and Virco Chairs. Nylon or Plastic Base Glides slide easily across floors as long as the floor is free of grit and grime.  When you do have grit or grime on the floor, it gets impregnated in the nylon and will scratch the floor.  The top freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs and holds on to the outside of the leg, see more views for picture of outside holding clip.  This glide is designed for 5/8" outside diameter legs, and the base is 1-1/4" in diameter.

Locker Slotless Bolt 10-24 x 3/8 for locker hinges, number plates, locker sides, tops, bottoms and more. Manufacturer part number 8632H. Also known as LF19, 9520.

Interior Steel Equipment Locker Door Jamb for a Right handed locker. Facing the Locker the Hinges are on the right hand side. Made in the USA. Also known as 30705, 3501, 76009, is4414r, lin378.

ASI Visual Display 9800 Markerboards
BEST QUALITY!

• PR-Series boards available with 1" maprail at no extra charge.
• Magnetic porcelain steel surface available in white or black.
• Trim and full-length shelf tray available in satin anodized aluminum or solid oak.

ASI Visual Display 9800 Advantage

• Marker packet sent with each markerboard.
• Installation hardware sent with board.
• M-Class Packaging System offers the best protection in the industry during shipping.
• Custom Pro-Rite® sizes available, call with specifications.

Single Piece Mirror, type 304 stainless steel formed mirror #8 mirror polished finish. Fabricated with Rounded corners, integral frame and 6 dimpled mounting holes. Front mount with Torx screws included. Designed in mind for Behavioral Health and Detention Centers.

Dimension

12” x 16” x 1/4” (305 x 406 x 6 mm)

Mirror Gauge

107-14 (20 Gauge)

Exit Device Dog Key 5/32" X 2-1/8" Long

Used on Von Duprin 55 and 88 Exit Devices, Corbin Russwin Exit Device, Yale Exit Device and Dor-o-Matic exit devices. This Hex Dog Key is not long enough for the Von Duprin 33, 34, 33A, 35B, 98 or 99 Exit Devices.

also known as Hex Key, Dog Key, Allen Key, Dogging Key

Used on chairs and table, so you can use an adjustable height gilde. Used with the LA10625 or SLA12525. 1/4-20 Thread, 1" outside diameter and 7/8" inside diameter.

Roval Dual Sanitary Napkin & Tampon Dispenser Dispenses 31 napkins and 22 tampons. Door made of 18 gauge type 304 satin finish stainless steel, with two flush tumbler locks. Universal coin mechanism is convertible for 25 cents, 50 cents or FREE (no coin) operation. Coin boxes have different lock and key than doors. Wall Opening: 15 5/8" W x 25 7/8" H x 4" D

Adjustable Height Swivel Glide, Nickel Based for chair legs with a 5/8" outer diameter and a 1/2" inside diameter. The base of this glide is 1 1/4" in diameter. This glide helps level uneven chairs.

The Swivel Glide 5/8" Outside Diameter with Ferrule Outside Holding Clip is used on American Desk, Artco Bell, Carter Craft, Krueger, Peabody and Virco Chairs. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.  This product will git all 5/8" outside diameter tubing.  The base has an 1-1/4".

Pro-Rite® Markerboards
BEST QUALITY!

PR-Series boards available with 1" maprail at no extra charge. Magnetic porcelain steel surface available in white or black. Trim and full-length shelf tray available in satin anodized aluminum or solid oak.

Marsh Advantage

Marker packet sent with each markerboard. Installation hardware sent with board. M-Class Packaging System offers the best protection in the industry during shipping. Custom Pro-Rite® sizes available, call with specifications.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

3" Kickdown Door Holder / Stop Zinc Plated Mickey

Zinc plated cold rolled steel,
Made in the USA
3" Arm Length

made by Grand Specialties

Pro-Rite® Markerboards
BEST QUALITY!

PR-Series boards available with 1" maprail at no extra charge. Magnetic porcelain steel surface available in white or black. Trim and full-length shelf tray available in satin anodized aluminum or solid oak.

Marsh Advantage

Marker packet sent with each markerboard. Installation hardware sent with board. M-Class Packaging System offers the best protection in the industry during shipping. Custom Pro-Rite® sizes available, call with specifications.

Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 70 and 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Non swivel chair glides for round tubing

7/8" outside diameter
3/4" inside diameter
1-1/16" base diameter
Nickel plated metal base

#6 X 3/4" Stainless Steel Sheet Metal Screws furnished.

Screw holes are slotted for adjustment

Extruded aluminum, with nylon brush

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Finishes

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 6-7/8" long and the die cast bracket measures 2-1/8" long.

Plastic Chair Tips for  Round Tubing chair legs with a  7/8" Outside Diameter X 3/4" Inside Diameter. Available in Black only.

Black Plastic Chair Tips for  Round Tubing with a chair leg 7/8" Outside Diameter X 13/16" Inside Diameter. Available in Black.

Plastic Chair Tips for Square Tubing chair leg with a 3/4" Outside Diameter X 5/8" Inside Diameter. Available in Black only.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Stainless Steel Folding Utility Shelf 14-5/8"X5-13/16"

Shelf: Fabricated of #18 ga stainless steel with a #4 satin finish. Leading
edges are radiused and deburred to prevent injury.
Mounting Bracket: Fabricated of #14 ga stainless steel finished to match
shelf. All edges are deburred and have a radius.
Spring: Heavy duty internal spring will allow shelf to return to the up-right
position when not in use.
Overall Size: 14 5/8”L x 5 1/2”W

Corbin Russwin Door Closer 2800 Regular Arm

Used on almost all of your Corbin Russwin door closers since the 1970's.

Part # 688F95

Non swivel glides for round tubing

5/8" outside diameter
7/16", 1/2" and 9/16 inside diameter
1-1/16" base diameter
Nickel plated metal base

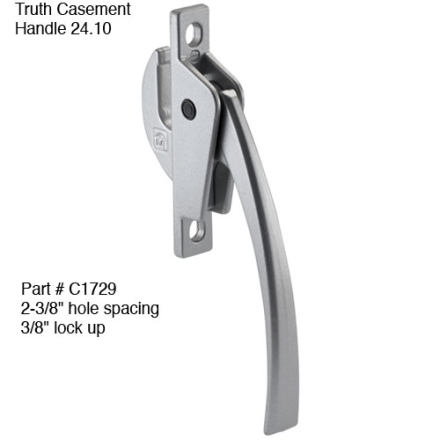

Truth 24.10 Casement Window Handle.

Die cast construction, then powder coated to the desired finish.

Aluminum and white in stock, call for other colors.
