Global Partitions Bottom Cam Housing

Chrome Plated Zamac die casting. The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

Corbin Russwin ED4000/5000 C9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 N9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

The Dorma RTS88 Top Arm with Channel 8832 is for use on Double and Single Acting Doors.   It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

The Jackson 201129 Track is used with the offset arms of the 20330 Door Closer.  The track measures 1/2 inch thick by 1-9/32 inches wide by 12-7/8 inches long. We can no longer get just the track.  This item will now include the arm.

Monarch 25-V Center Case Kit

The Falcon / Monarch 25-V Center Case Kit 650242 for non Fire Rated Doors.  The Center Case on the Monarch Falcon 25-V is the same for the Fire Rated and the Non Fire Rated.

Falcon Part # 650242

The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod.  Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

Zipper Pile Weatherstrip .270" Backing - .300" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Scranton Stealth Brackets for Integral Hinges 4 brackets included. These brackets help support the plastic pins used with the integral hinge pin system. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Dorma RTS88 Top Arm 8835 is for use on Double or Single Acting doors that have a 1" top rail.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

General Partitions Bottom Cam Housing Unplated

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

Metpar Partitions Bottom Cam Housing Unplated

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

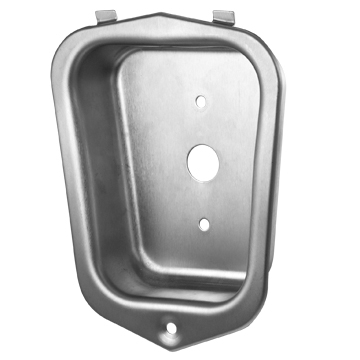

Interior steel equipment locker recessed Handle, The locker handle is constructed of stainless steel. The Locker handle is Ada approved and most commonly used these days. This product uses the lifter that connects to the lock bar to release the door from the frame of the locker. Also known as 3725, is4442.

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

The Detex V40xNS is designed for Narrow Stile Doors with a stile width of at least 2". The 36 inch is 34-7/8 inches wide overall, and the 48 inch device is 46-7/8 overall.

American Sanitary Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

The Ampco Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

Flush Metal Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Norton Hook Up Boards for units made after 2009.  Available in 24 or 120 Volts.

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Roller Bumper Straight Arm 4" RB471

Features:

• Constructed in heavy-duty cast brass.
• RB471 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Jackson 1085 Lever Arms

Replacement Lever Arm for the Jackson 1095 Active Housings.   This arm will only work on the 1095 Active Case!  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

Jackson Part # RH 30-1247/LH 30-1248

Roval Surface Mount Waste Receptacle 20826 Receptacle front and sides fabricated of 20 gauge type 304 stainless steel with satin finish. Capacity 11 gal. (42 L). Same as 20826 but with closed top, spring-loaded door. Capacity 12.8 gal. (48.8 L). Overall size 15-1/8"x23"x8-1/2"

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Metpar Partitions Bottom Cam Housing Chrome Plated

Chrome plated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060 Used with General, Metpar and Ampco

LCN 4820 Closer Arm

The LCN 4820 Auto-Equalizer Regular Arm comes with the Arm & Forearm, Rod & Shoe, and all the arm screws.

LCN Part # 4820-3077

Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

General Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

B-5262 Surface Mounted Paper Towel Dispenser on sale today. Durable ABS plastic in a grey color. Holds 400 c fold or 525 multifolds towels. Cabinet slots indicate refill time. The door has a concealed locking device. The unit is 11-1/2"w x 15-1/4"h x 4-3/4" depth.

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram
