Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Dor-o-matic 1090/2090 Assembly Plate. This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

The Truth 22.18 Front Mount Awning Operator spreads 20-1/8 inches pin to pin on the arms when it is in the closed position. The Front Mount hole spaceing is 7 inches on the outside holes and 6 1/8 inches on the inside holes.

Bobrick clothes hook for inside door mount. Also known as 1000869. For hanging coat when in toilet compartment.

The Jackson 20368 is used with the 20330 Door Closer offset arms. Track measures 25/32 inches tall by 29/32 inches wide and 14 inches long.

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

Bobrick flat mount keeper for door latch. Also known as 1040-39. Used with slide latch for assembly

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

all american chrome plated construction

A=1-5/8"

102

The Falcon 8242 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon 8231 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

Doromatic 1690 1790 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door.  The kit ships with form threading screws for installation.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down<

Global Partitions Complete Solid Phenolic material Alcove Partitions, Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard Stainless Steel Hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Truth 11.43 Awning Operator

Arms are 8-3/8" long, and measures 20-3/4" across when the arms are in the closed position.

Awing Operator, we usually find 31545 stamped on the arm, they used to be a cadmium plated steel, now they are powder coated. We also find 21221 on it.

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 5-3/8" long and the die cast bracket measures 2-1/8" long.

Corbin Russwin ED4000/5000 A9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

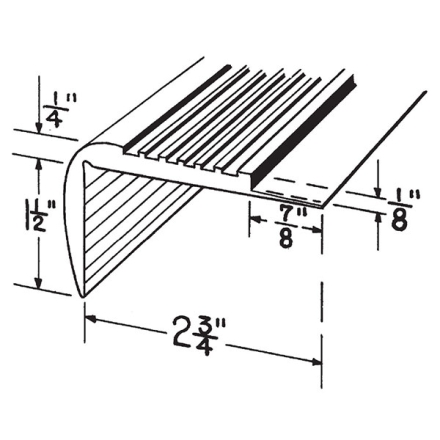

Ribbed Koroseal Vinyl lap-type nosing for front edge of stages, bowling lane steps, platform-like floors and bar foot rests. Form fitting adjusta-nose; has a 7/8” lip to allow 1/8” flooring to lap over back edge. Standard 8’ lengths. Install with #400 Neoprene Contact Cement or #300 Water-based Contact Adhesive.

SPECIFICATIONS:

Furnish and install No.105 Service Weight Koroseal Vinyl Ribbed Lap-Type Nosing; 2-3/4” deep; 1-1/2” nose depth; square adjusta-nose. Lap 1/8” flooring over the back lip to butt against ribbed design. Select from standard colors of black or brown.

Shipping:   Due to shipping costs, this product is shipped in two 48" sections

Doromatic retractor. The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Cal-Royal 9000 Series Lever Trim HDESC is for use on the 9800 and 9800 Exit Devices. The Trim has a clutch mechanism to prevent breaking and two heavy duty springs to prevent sagging. Escutcheon measures 2-5/8 inches wide by 10-5/8 inches long.  The lever projects out 2-7/8 inches. Key locks or unlocks lever.

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Hadrian Stainless Steel Alcove Bathroom Partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Republic Steel Locker Wire Padlock Attachment, hole spacing 1-7/8".
7109412

Ives Roller Bumper Straight Arm 6" Ives RB472

Features:

• Constructed in heavy-duty cast brass.
• RB472 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Fiat Partitionas Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partitions Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

2 piece sectional
9/32" square x 2-5/8" long
20 tpi

Medart Bleacher Stiffener Plate 12" width x 4-7/8" with a bend.

B-5050 Bobrick Surface Mounted Impact Resistant Soap Dispenser. Valve dispenses all purpose soaps. No lock with easy refills. Plastic polymer grey in color. The capacity is 50 fl oz and can mount to a mirror if needed. The unit is 6"w x 8-1/8"h x 4" depth to push button.

Complete Stainless Steel Alcove Partitions, Stainless Steel Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Von Duprin 210DT Trim

5-3/8" x 4-25/32" x 3/32"
1-31-32" projection

Sanymetal Partition Keeper 2" Between Screws Inswing Flat

Polished chrome plated Zamac construction. Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.

Shipped with mounting screws.

Von Duprin 210NL Trim

5-3/8" x 4-25/32" x 3/32"
1-31-32" projection

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information
