The Truth Entrygard 10584 Right Hand Bracket measures 2-3/4" x 1-3/8" x 1/2".  The mounting holes are 1-5/8" on center.

Chrome Plated Toilet Partition Keeper Bumper For 1-1/4" Round Edge Post

Polished chrome plated Zamac construction. The strike and keeper measure 1-1/4" high by 2-3/8" wide by 1-3/4" deep. The stop is 1/2" thick and projects out 1-1/8". The slot is 7/16" wide by 5/8" high. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5590.

Shipped with mounting screws.

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

Flush Metal Partitions Nylon Cam For Steel

White nylon plastic construction. Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall heigth of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185

Interlocking 1/2" x 11-7/8” x 11-7/8” recycled PVC tiles with bristle carpet inserts. Brushes off sand, dirt and slush from shoes and cart wheels; open grid drains away water and debris. Modular 11-7/8” x 11-7/8” tiles allow flexibility and the ability to fit the product to any size area. Tiles snap together easily to install and replace. Beveled ramp edges are available for non-recessed applications.

This product is part of our sustainable development program where the tiles can be returned at the end of the lifecycle for a credit toward replacement product. The material is then cleaned, ground, treated for contaminants in an environmentally safe process, and re-formed into new matting. Check with our customer service department for details.

Sold in cartons of 24 tiles, 23.36 sq feet

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Two Hole 1-1/2" Plastic Handle

Constructed of high density plastic with an 1-1/2" hole spacing. The lock up dimension is 3/8". The base measures 2-1/8" x 7/8". The handle measures 3-1/2" long.

The white is instock, the beige has a 1-3 week lead time.

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Bobrick clothes hook for inside door mount. Also known as 1000869. For hanging coat when in toilet compartment.

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About .9lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 3"

Plate Height: 3/16"

Gap/Spacing: 1"

The Truth 22.18 Front Mount Awning Operator spreads 20-1/8 inches pin to pin on the arms when it is in the closed position. The Front Mount hole spaceing is 7 inches on the outside holes and 6 1/8 inches on the inside holes.

Bobrick flat mount keeper for door latch. Also known as 1040-39. Used with slide latch for assembly

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

Global Partitions Complete Solid Phenolic material Alcove Partitions, Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard Stainless Steel Hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Corbin Russwin ED5400 Bottom Latch, Corbin Russwin part # 650F58-8

Improve safety and prevent worn carpet edges on steps; for new or renovation work. Butt 1/4” to 3/8” thick carpet against both the top and bottom lips of butt-type carpet nosing. Standard 8’ lengths; easily cut to size. Install with #400 Neoprene Contact Cement or #300 Water-based Contact Adhesive.

SPECIFICATIONS:

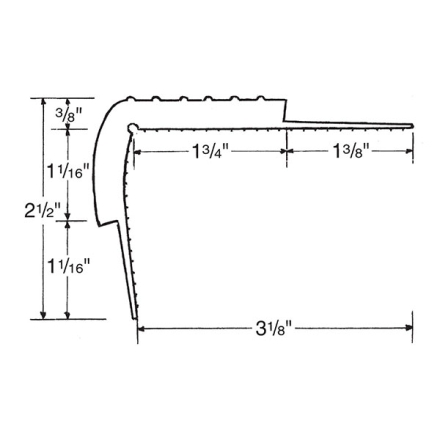

Furnish and install No.140 Koroseal Vinyl Ribbed Carpet Nosing; 3-1/8” deep; 2-1/2” nose depth; square adjusta-nose. Lap 5/16”, 1/4" or 3/8” carpet over lip on both the step and riser. Select from standard colors of black, brown.

Shipping:   Due to shipping costs, this product is shipped in two 48" sections

The Falcon 8242 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon 8231 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

all american chrome plated construction

A=1-5/8"

102

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 5-3/8" long and the die cast bracket measures 2-1/8" long.

Corbin Russwin ED4000/5000 A9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Truth 11.43 Awning Operator

Arms are 8-3/8" long, and measures 20-3/4" across when the arms are in the closed position.

Awing Operator, we usually find 31545 stamped on the arm, they used to be a cadmium plated steel, now they are powder coated. We also find 21221 on it.

Ribbed Koroseal Vinyl lap-type nosing for front edge of stages, bowling lane steps, platform-like floors and bar foot rests. Form fitting adjusta-nose; has a 7/8” lip to allow 1/8” flooring to lap over back edge. Standard 8’ lengths. Install with #400 Neoprene Contact Cement or #300 Water-based Contact Adhesive.

SPECIFICATIONS:

Furnish and install No.105 Service Weight Koroseal Vinyl Ribbed Lap-Type Nosing; 2-3/4” deep; 1-1/2” nose depth; square adjusta-nose. Lap 1/8” flooring over the back lip to butt against ribbed design. Select from standard colors of black or brown.

Shipping:   Due to shipping costs, this product is shipped in two 48" sections

Hadrian Stainless Steel Alcove Bathroom Partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction

Ives Roller Bumper Straight Arm 6" Ives RB472

Features:

• Constructed in heavy-duty cast brass.
• RB472 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Republic Steel Locker Wire Padlock Attachment, hole spacing 1-7/8".
7109412

Complete Stainless Steel Alcove Partitions, Stainless Steel Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Fiat Partitionas Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partitions Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

Sanymetal Partition Keeper 2" Between Screws Inswing Flat

Polished chrome plated Zamac construction. Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.

Shipped with mounting screws.
