Truth 23.01 Single Arm Front Mounting

9-1/2" arm

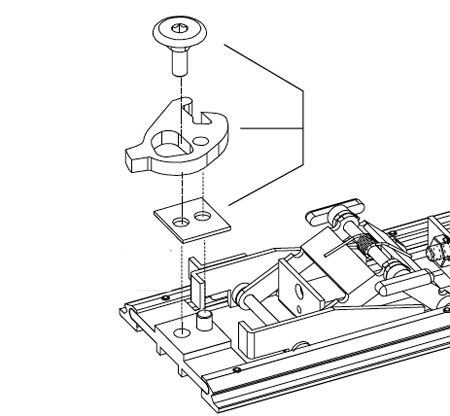

Dor-o-Matic 1390 Dogging Assembly. If you have a 1390 and the dogging is stripped, this is the part you need. The 1390 was discontinued in about 2003.  The kit includes the dogging cam, activating cam, spacer and retaining ring.

Doromatic part # 4270106669 or PB96 or PB-96

Vinyl Stair Treads GS365 with Grit Strip

This is one our highest volume vinyl stair treads. Heavy duty to stand up to most applications with the safety of inlaid grit strips. Made in the USA

SPECIFICATIONS:

Furnish and install No. GS365 Koroseal Vinyl Stair Treads
Grit-Strip rib design stair treads; 7/32" thick, 12" deep; 1-1/4" square nose; two black* 1" wide abrasive Grit-Strips inlaid in tread, 1" from front edge, spaced 1-1/4" apart; contains no asbestos fiber; made of first quality homogenous vinyl, color throughout thickness; free from imperfections which might lessen serviceability. Meets Federal Specs. RR-T-650E Type B. Select standard length of 36", 42", 48", 54", 60", 72", 84" or 96". Select standard solid color of Brown or Gray.

Roll Type Self Adjusting Center Pull Dispenser
Impact resistant plastic
Holds rolls up to 9" dia. and 9" tall
10"w x 12"h x 10"d

projects 3-1/4", 2" dia

EM A Type Receptacle

Receptacle - Can install over existing rods, then snaps closed permanently. Slides freely on rods up to 1 3/8" dia.

Materials: Dark Brown Plastic

EMCO

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

The 7520R is a smooth surface rubber stair tread.   These treads come in Square and Round Nose, this page is for the Round Nose, for Square Nose search 7520R. The treads are 1/8" thick along the entire depth of the treads, and have a nose that drops down 1-9/16".  The 7520R Round Nose is not available with the Grit Stripping. They are designed for interior use.

Wayne Bleacher Arm Bushing 27/32" X 3/4"dia.

Roll Type Bottom Pull Towel Dispenser.
Impact resistant plastic Roll Type Paper Dispenser.
For Rolls 8"w x 8"dia.
Towels are cut automatically
sheets are cut at 11" length
11"w x 16"h x 9"d

Brunswick Bleacher Floor Pad 3/4" X 2" dia. Note hole 3/16", outer 7/16"x1/4" depth

Rixson 28 Series Bottom Arm Package 282026

This kit included the Arm Plate & Stud, Arm Spindle Screw, Arm & Arm Set Screw, Arm Spindle Collar and Arm Alignment Screw & Washer

Rixson Part # 282026

Napkin / Tampon Dispenser Recess

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish

Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
: Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.

Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

EM C Type Receptacle

Receptacle - Nickel-plated steel slides on hanger rods up to 1 3/8" dia.

Materials: Steel - Nickel Plated

EMCO

One inch diameter solid push bar, 2-1/4 inch projection with 1-1/4 inch clearance and 33-1/16 inch centers.  One side is thru bolted the other is mounted on a surface mounted stud.

The 7020 is a smooth surface rubber stair tread.   These treads come in Square and Round Nose, this page is for the Round Nose, for Square Nose search 7020. The treads are 1/4" thick at the nose and taper to 3/16" at the rear. For the Grit Stripped version is not available for the round nose treads. They are designed for interior use.

Dor-o-Matic 1990/2090 Set Screw. This set screw goes thru the housing to secure the housing on the mounting studs.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Jackson Exit Device 1095 active housing. Includes everything shown in picture.
The distance between the mounting studs is 6-5/16".

Jackson part # 30-988 Right Hand Body
Jackson part # 30-989 Left Hand Body

Left Hand Housing shown in the aluminum finish.

Back to Back mounted handles constructed of 3/4 inch round stock.  One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Medart Bleacher Wheel, 2-1/2" dia x 3/4" tread x 1/4" axle(Hub Width 7/8". Used with first row and 2+ row truck assemblies.

Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

Roll Type Self Adjusting Center Pull Dispenser
White Impact resistant plastic
Holds rolls up to 9" dia. and 9" tall
10"w x 12"h x 10"d

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 48′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 48′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

Napkin / Tampon Dispenser Surface Mount

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish
Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.
Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

Ives Wall Mounted Door WS11X

• Constructed in heavy duty cast brass.
• Hexagon section on unit aids in fastening unit when expansion shield is used.
• Replaceable rubber bumpers features off-set shoulder and threaded shank
  that screws into body of unit.

Furnished with a threaded stud and expansion shield for
masonry type mounting. 2" diameter base by 3-3/4" projection.

Wall Guard’s white acrylic units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10455K.

• Unit Size: 31.5”x15.5”x.06”
• White(Antimicrobial Acrylic-PVC Composite)
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

The Von Duprin 98/99 Maintenance Kit includes all the parts and pieces you need to keep your 98 or 99 device running properly for years.  If you are interested we can email a list of the parts.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

Jackson 1085 Hinge Case, also the 1095 Jackson inactive Case. Includes everything in the housing.

The housing mounting studs are 6-5/16" on centers

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

The Interkal Bleacher Wired Accupower Motor 1/4 Hp - 1 Phase is also known as K01151A100 or Part # P210709

Delivery of the Interkal Bleacher Wired Accupower Motor 1/4 Hp - 1 Phase we try to keep in stock at our facility for quick deliveries. The Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase is designed specifically for use in Interkal brand bleacher systems (Vectra bleachers), providing reliable power and performance. With a horsepower of 1/4, it is ideal for applications that require moderate lifting and lowering capabilities. The single-phase design ensures compatibility with standard electrical systems, making installation straightforward.

The Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase is built to last, featuring durable materials that can withstand the rigors of frequent use. Whether you are upgrading an existing bleacher system or replacing a worn-out motor, the Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase is a solid choice. For those looking to enhance their bleacher operations, the Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase offers smooth and efficient performance with 115 volts. With its robust design and user-friendly features, this motor not only simplifies the operation of your bleacher system, but also ensures safety and durability.

To maximize the benefits of your Wired Accupower Motor 1/4 Horsepower 1 Phase for Interkal bleachers (Vectra bleachers), regular maintenance is recommended. This includes checking connections, lubricating moving parts, and ensuring that the motor is free from debris. By taking these simple steps, you can extend the life of your Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase and maintain optimal performance.

If you have any questions about the installation process or compatibility with your current setup, feel free to reach out to our customer service team. We are here to help ensure that you get the most out of your Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase. If you ever need assistance, our dedicated support team is just a phone call or email away. We are committed to providing you with the best service possible, ensuring that your Wired Accupower Motor 1/4 Horsepower 1 Phase for Interkal bleachers systems operates smoothly and efficiently for years to come. The Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase is an excellent investment for anyone looking to enhance their seating arrangements. With its combination of reliability, efficiency, and ease of use, the Interkal Bleacher Wired Accupower Motor 1/4 Hp 1 Phase is sure to meet your needs and exceed your expectations.

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Product Description & Features
• Concealed Wiring
• Total Floor Space Required:
6-5/8" (168mm)
• Mounting Requirements: Conduit
connects directly to floor plate
• UL listed door holder

Floor Mounted Door Stop FS18

Features:

• Security Door Stops designed for use in high vandalism areas.
• Molded from flame resistant, resilient material around a heavy-duty stud.
• Once grouted in concrete, leaves no exposed fasteners to be tampered with or removed.
• Ideal for jail or security cell areas where floor mounted stops are required.
• FS18L also ideal for concrete wall applications.
• Finish: Black, 2" Diameter

FS18S 1-1/2" Height
FS18L 3" Height

Product Description & Features
• Total Projection: 4-1/8" (105mm)
• Mounting Requirements:
1-1/2" (38mm) deep adapter housing
• UL listed door holder
