Dor-o-matic Complete housing assembly for the 990/1990 and the inactive sides of the 1090/2090. Includes all components to replace your current housing. Housing measures 7-1/2" long by 1-3/16" wide, with a 6-1/4" center to center stud mounting.

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902782 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

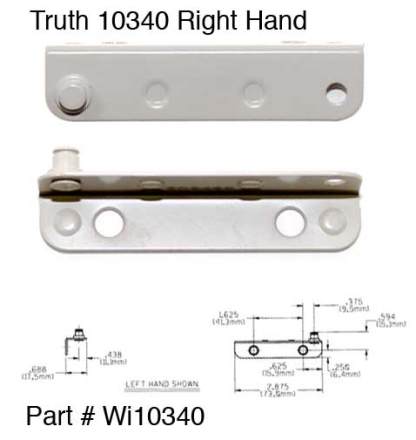

Truth Entrygard 10340 Right Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

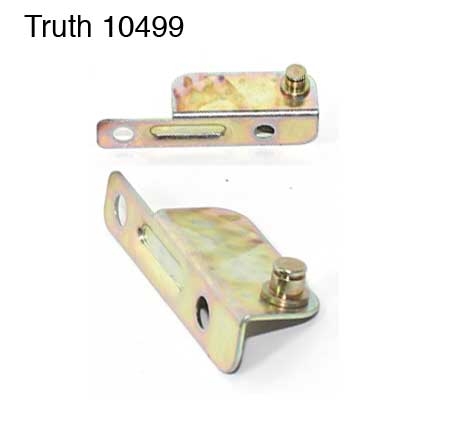

Truth Entrygard 10499 Right Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Dorma 8616 Door Closer

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, etc..) and the hand of the door, see diagram.

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

Truth Entrygard Flip and Fold Handle 12905

Can be used on all Truth Entrygard Operators. Replaces the orignal handle and cover with a folding handle that fits flush into the cover.

11/32" spline

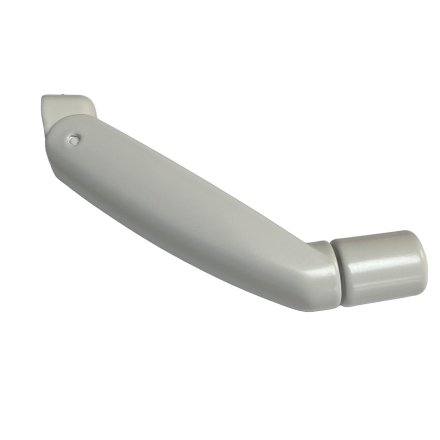

Ashland Folding Handle, for use with Ashland Window Operators only

Dorma 8916 Door Closer

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

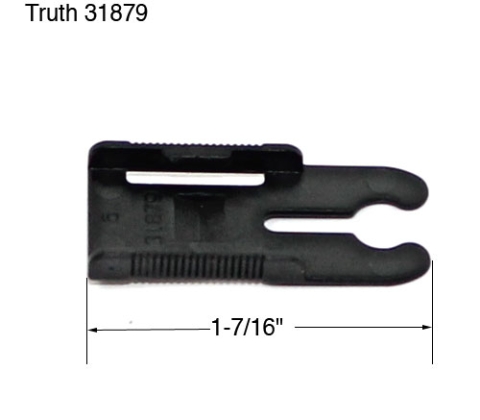

Truth 31879 Replacement Shoe Clip

Used on the 51.00 Truth Maxim operator

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

1. Works with most Liquid/Gel Hand Sanitizers or Liquid Soaps
2. Ideal for use in offices, schools, warehouses, food service facilities, manufacturing, hospitals and much more
3. Stand elevates to the perfect height for sanitizing hands on-the-go
4. ADA compliant in force and one-handed operation
5. Accessible to people with disabilities
6. Made with durable ABS plastic
7. Top dispensing technology reduces risk of leaking valves
8. Automatic, hands free operation for improved hand hygiene
9. Four C batteries (not included) for longer life
10. 1200mL capacity dispenser Bulk Fill
11. Site window to easily monitor the soap level
12. Equipped with lock and key

Worley Locker Metal Plunger only, We have this manufactured in the USA. Also known as 80703, 8056, 78008, wr9918s.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

LCN Sentronic Door Closer Arm - 4040SE-3077T

This arm will only work on the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

Worley Locker Nylon Plunger only, We have this manufactured in the USA. Also known as 80308, 8055, 78005, wr9918, lw615.

Truth Entrygard 10341 Cover.

Replacement cover, fits all of the Truth Entrygard Operators. The cover is 5-1/4" wide by 1-1/8" deep by 1-1/4" high.

Truth Part # 10341

Plastic Construction

Two Hole 1-1/2" Wedgeless Cam Handle

Hinged flap rolls down and locks the window shut. We find this window handle is used alot in the western states. The older version had a 1-3/8" hole spacing, but the new one has 1-1/2" hole spacing.

Sometimes we find the number R and 1 on the flap and DISCO cast in on the back of the handle.

White only!

Doromatic Surface Strike STK45

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

A.W. Anderberg 301AL 4 Bar Window HInge, aluminum construction.

29/32" width x 5/8" stack height

Found in commercial aluminum framed hopper windows.

10" and 12" only, if you have an older larger size, please use the A.W. Anderberg 301ST or A.W. Anderberg 301SS as a replacement. You might have to shim the tracks in these cases, because the stack height is lower on the steel and stainless steel hinges. A.W. Anderberg no longer makes the larger sizes of the Aluminum Hinges due to the brittle nature of aluminum.

Sold individually, we recommend changing both hinges with you are replacing the hinge.

6-20-2012 No longer manufactured, what we have in stock, is what we have. You will have to replace with 301ST or 301SS Hinges

Project-In Kawneer Window Handle

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

We ship the P4907RP as a replacement.

No longer available, we do have some of the GPB116 Cam Assemblies left.

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

The Adams Rite 8600 Concealed Vertical Rod is designed for narrow stile aluminum framed glass doors.  The device will fit on stile widths of 2" or more.   We recommend this device for replacement only, modifying your existing door to this exit device will be labor intensive.  The 8611 would be for the aluminum finish and the 8622 would be or the dark bronze finish.  We try to keep the Aluminum and Dark Bronze in stock in the 36" and 48" devices.

This device is not Electrified, please call for the Electrified Model.

Truth T-Handle

Truth T-Handles are idea for applications were you do not have the clearance for a regular crank handle. Also known as a Butterfly Handle. Fits all Truth Operators.

11/32" spline

Roval Automatic Soap Dispenser, 20364 Hands-free, battery-operated soap dispenser. Dispensing cycles adjustable with tamper proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view soap level. LED indicates adjustment and operation. Bulk fill with a 34 oz capacity. Overall Size 5 1/2" W x 10 7/8" H x 4" D projection

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

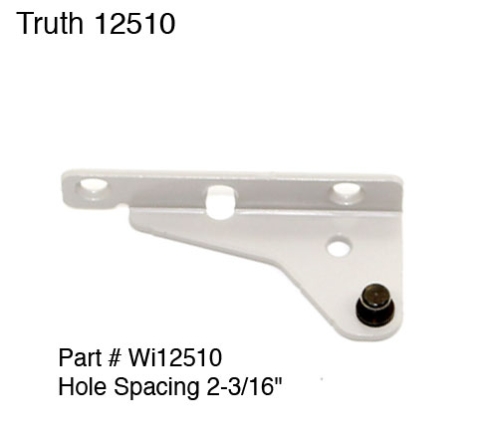

Truth 12510 Left Hand Bracket

This bracket is usually used with Truth Split Arm or Dyad Operators.

Adams Rite End Cap

On this Adams Rite End Cap we sometimes find the number HX0471 cast into the Black Plastic construction.

Adams Rite Part # 25-0471

The Von Duprin 050671 and 050814 solenoid have been discontinued.  All of our stock is gone.  Von Duprin has come out with a retrofit kit to update your E996 Lever to the M996 Lever. The kit changes out the solenoid for a mortorized version, more robust and uses less current. The newer version can be found by searching for M996.

This solenoid is used on the E996 Electrified Lever Trim.  The Solenoid body measures 1-3/8” x 9/16” diameter, mounting bracket has a 3/4” on center hole spacing.  The wiring harness has a two wire plug.  We some times fine the number 991342 on the solenoid.

New for 2024 Von Duprin has come up with a Mechanical Electrified Conversion kit. This kit converts the EL Solenoid to a Mechanical Electrified Trim.  More information can be found @ https://www.robertbrooke.com/von-duprin-m996l-retrofit-kit.html

Von Duprin Part # 050814
Von Duprin Part # 050671

1. Works with most Foam Hand Sanitizers or Foam Soaps
2. Ideal for use in offices, schools, warehouses, food service facilities, manufacturing, hospitals and much more
3. Stand elevates to the perfect height for sanitizing hands on-the-go
4. ADA compliant in force and one-handed operation
5. Accessible to people with disabilities
6. Made with durable ABS plastic
7. Top dispensing technology reduces risk of leaking valves
8. Automatic, hands free operation for improved hand hygiene
9. Four C batteries (not included) for longer life
10. 1200mL capacity dispenser Bulk Fill
11. Site window to easily monitor the soap level
12. Equipped with lock and key

A.W. Anderberg 77AL 4 Bar Window HInge, Aluminum Construction

29/32" track wide x 11/16" stack height

Found in commercial aluminum framed hopper windows.

10", 12" and 14" only, if you have an older larger size, please use the A.W. Anderberg 301ST or A.W. Anderberg 301SS as a replacement. You might have to shim the tracks in these cases, because the stack height is lower on the steel and stainless steel hinges. A.W. Anderberg no longer makes the larger sizes of the Aluminum Hinges due to the brittle nature of aluminum.

Sold Individually, these hinges are non-handed. We recommend that you change both hinges when replacing.

6-20-2012 No longer manufactured, what we have in stock, is what we have. You will have to replace with 301ST or 301SS Hinges

1. Works with most Foam Hand Sanitizers or Foam Soaps
2. Ideal for use in offices, schools, warehouses, food service facilities, manufacturing, hospitals and much more
3. ADA compliant in force and one-handed operation
4. Accessible to people with disabilities
5. Made with durable ABS plastic
6. Resistant to chemicals, heat and impact
7. Top dispensing technology reduces risk of leaking valves
8. Automatic, hands free operation for improved hand hygiene
9. Four C batteries (not included) for longer life
10. 1200mL capacity dispenser Bulk Fill
11. Site window to easily monitor the soap level
12. Equipped with lock and key
