Truth 16.27 Sash Lock. Sometimes known as the Truth Entrygard Sash Lock.

3" high x 2-9/16" deep x 1" thick.  We sometimes find the numbers 45208 or 40707 cast into this part.

Left hand sash lock shown in picture.

2-3/8" between screws

Single Hole Cam Handle

This handle is only available in the brushed bronze finish, the window handle is constructed of cast red bronze. We find this handle used with Fenestra Windows.

Right Hand S228RH
Left Hand S228LH

The ESC6600 are non handed, with a Grade 1 thru bolted design. It features a clutch mechanism, double heavy duty spring support to prevent sagging and a hardened stell heavy duty spindle. Entrance function, key locks or unlocks lever, operates as a Classroom Function. Ships with mounting screws and a 6-Pin Schlage Mortise Cylinder.

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 6-7/8" long and the die cast bracket measures 2-1/8" long.

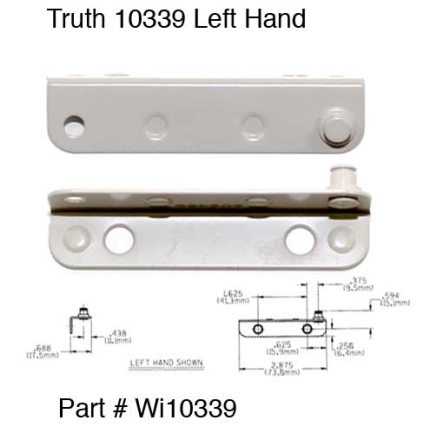

Truth Entrygard 10339 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth Entrygard 10498 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

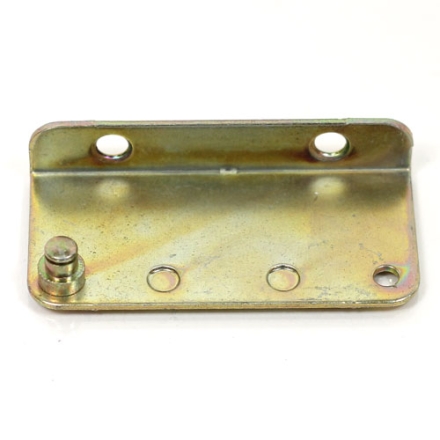

Truth Entrygard 10795 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth 10005 Replacement Shoe

The metal part is 1-1/8" x 15/16". The plastic piece is 1-3/8" with a .280" diameter

Used on Truth Awning Operator number 11.16 and 11.44.

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior diameter is 5" with 4-1/2" depth to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7-1/8" (181mm) Square and features front mounting holes. Designed in mind for Behavioral Health and Detention Centers. Mounting hardware included.

Overall Dimensions:

7-1/8″ x 7-1/8″ x 4″ (181 x 181 x 102 mm)

Wall Opening:

5-5/16″ dia. x 5″ min. depth (135 x 127 mm)

Gravity Door Coordinator

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

Gravity Door Coordinator 9"

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

1525 master lock combination padlock. Standard 3/4" vertical shackle.
Keyed controlled & Combination.
Master key sold separately. We will need your master key number if adding to your existing system. These keys start with a "V" and has digits after it.

1-2 week lead time

1714mkada Master Lock

• 5-Pin Tumble key

• Built in key locks, Bolt moves Horizontally.

• Comes with 2 user keys.

• Automatic locking springbolt.

• For box lockers

• Right or Left Hinged

• Master Keys extra, We will need your master key number if adding to your existing system.
• 1-2 week lead time

Our replacement Republic Storage Handles are based on the version they produced in the 1970′s, which means more material on the legs (lugs) and housings. The extra material makes them much more heavy duty then the ones they are producing today. We used to sell the Republic Storage #12 Locker Handle three ways, just the lift, just the case or the complete assembly, however we can only sell the complete handle now. The case and the assembly come with the mounting screws. The Republic Storage #12 handle, also goes by Republic Steel #12 handle, and Berger #12 handle. The #12 handle has been produced since the 1965 and is still produced today. Also known as 70101, 2020, 70000, rs1105, lr301.

Monarch 19 Series Chassis Assembly Cover

This is the cover for the Monarch Falcon 19-R Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8". We sometimes find the number 6133 - 000 cast into the inside of the cover.

Monarch/Falcon part # 650384
Old Part # 6133

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

1630 master lock built in locks.
Automatic Locking Bolt
For Lockers with handles and automatic locking bars
Locking bolt moves vertically
We will need your master key number if adding to your existing system. Master keys start with "F" and has digits after it.
1-2 week lead time

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

Truth 11454 Contour Handle. Will work with all Truth Operators manufactured after 1978. Features a snap on clip, so no tools are needed.

11/32" spline

Tuth Part # 11454.xx were xx is the color

1714 Master Lock

• 5-Pin Tumble key

• Built in key locks, Bolt moves Horizontally.

• Comes with 2 user keys.

• Automatic locking springbolt.

• For box lockers

• Right or Left Hinged

• Master Keys extra, We will need your master key number if adding to your existing system.
  1-2 week lead time

Accurates commercial stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

Turbo Dri High Speed Dryer American Specialties introduces the Turbo Dri High Speed Dryer 0197 model. Quick drying — less than 12 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel. Overall Size 8 1/16" W x 11 19/64" H x 7 5/64" D.

Sargent 20/30/60/80 Dogging Assembly

We only sell the dogging assembly parts as a complete set. This Dogging Assembly Kit is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Exit Devices. This dogging assembly kit has been around since the 1980's.

Sargent part # 68-2596

The Truth Encore Handle and Cover are used on the Encore Operators Wi5110 and Wi5010.  The cover are constructed on Plastic and the Handles are die cast metal.  The ones shown on the website are Right Hand and the color is Bronze.  Once color is selected and hand, the different hands will appear, the color is not correct.

Truth Part Numbers 12614 (Left Hand) and 12616 (Right Hand).

Color Chart

Adams Rite New Style end cap for the 8700 and 8800.
The black cap measures 2-3/8" high x 1-1/2" wide x 1-1/4" projection. We some times find the number 25-0674-01 cast in the black plastic.

Adams Rite Part # 41-0901-03-IP

International 58L Escutcheon Trim for the 5000 Series Devices

Non-handed, easily install with exit device Escutcheon plate measures 8-1/16" tall by 2-5/8" wide by 29/32" thick. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle-Most Popular
Passage - no cylinder hole, lever always active
Night Latch (Storeroom) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Roval Automatic Deck Mounted Soap Dispenser, 20333 Constructed of polished type 304 stainless steel on exposed surfaces with battery-operated, hands-free sensor. LEDs indicate function, battery condition and soap supply level on face front. Translucent tank holds 54 oz. (1600 ml) of liquid soap

Door Pull Offset 1" Diameter PH-4000

1" Diameter Solid Aluminum Round 3-1/4" Offset Door Pull, usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.

Projection 3 -1/4"
Door Clearance 2 -1/4"
Center To Center 9". 10' and 12"
Anodized Finishes Aluminum or Dark Brown
Mounting Hardware Included

LCN 4640 Low Energy Door Closer

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

International Door Closer 200 Series Overhead Door Closer

UL Listed
Built in positive back stop and hold open positions.
Two speed control valves: Closing and latching speeds controlled by separate regulating valves, fully adjustable after installation.
Positive centering for alignment and to hold door closed against any normal wind or draft.
Stable hydraulic door check fluid for any climatic operation and constant lubrication.

Hydraulic Cylinder only

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

Adams Rite 41-0902-04-IP Metal End Cap Assembly is used on the 3100, 8100, and 8200 which are their Surface Vertical Rod devices.  Replaces the 41-0901-04, which is the plastic version.  We find the number 23-0601 cast into the cap.

Adams Rite part # 41-0902-04-IP
