Von Duprin 8827-F Top Latch Cover Kit - 050465

This is the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Durpin Part # 050465
Old Part # 961206

Monarch 19-24-25-XX Top Latch 588

Monarch 19-24-25-XX Top Latch 588 for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

Toilet Partition Urinal Screen Bracket Cast Stainless Steel. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of Cast Stainless Steel. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1323. The bracket is shipped as two pieces plus all of the fasteners.

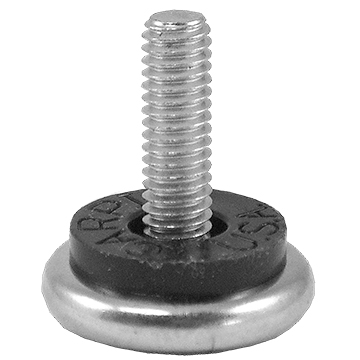

Non-Swivel Leveler Threaded Stem Glide with metal base. Thread is 1/4-20, Base Diameter is 1 1/16" and the stem length is 1". This glide screws into a 1/4" threaded leg hole to put a selected height. Use this product to stop wobbling on an uneven floor.

Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Chrome Plated

This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.

Von Duprin 88 Exit Device

Von Duprin 88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Field reversible, Five popular finishes, ships with 42" crossbar whichis field sizeable, Hex key dogging, 3/4"(19mm)throw latch bolt

Ships with all mounting hardware and strike.

Non-Swivel Leveler Threaded Stem Glide with metal base. Thread is 3/8-16, Base Diameter is 1 1/4" and the stem length is 1 1/2". This glide screws into a 3/8" threaded leg hole to put a selected height. Use this product to stop wobbling on an uneven floor.

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Toilet Partition Surface Mounted Ada Slide Bolt Latch Inswing Latch & Keeper Stainless Steel

Stamped stainless steel construction. Latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.

Shipped with mounting screws.

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

Ordering Online All Solid Plastic(HDPE) Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16, 18, 22, 28, 34, 40,46,52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Part # 9TPP-XX (where XX is door opening width) Reinforcing for grab bars available
Color Chart

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Global Partition Complete Solid Phenolic material in a Corner Partition, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Ordering Online All Stainless Steel Panel Dividers Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Stainless Steel Panels Include 4 Standard Chrome Plated Brackets Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76" Actual width is 1/2" less. Specify - Part # 9TPSS-XX (where XX is door opening width).

Global Stainless Steel Color Chart

Chrome plated global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8513010.

Global Partition Complete Solid Phenolic Free Standing Partitions, Overhead braced floor mounted stalls. Standard stalls 36"x60" depth (24" door), ADA stall 60"x60"depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

International Door Closer 8052 Delayed Action

Same closer as the 8050 Series or 8051P, but with Delayed Action. Delayed Action is a function of the Door Closer hydrualic cylinder. The hydrualic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-P DU or 8052-P AL

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Metal Door Automatic Flush Bolts FB31P

Fully automatic-inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set would include the top and bottom latches.

3 Hour UL Listed

Ives Part # FB31P

Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

International Door Closer 9001 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 1 through 6 (adjustable after installation)
3. Precision cast aluminum housing with forged steel arm
4. Stable hydraulic door check fluid for any climate operation. Using a fire resistant oil with an
operating range from -43.6°F (-42°C) to 140°F (60°C)
5. Standard sweep and latch speed
6. Standard adjustable backcheck or without backcheck
7. Two speed control valves allow closing and latching speeds to be controlled by separate
valves; fully adjustable after installation
8. Standard Tri-packed for regular arm, top jamb and parallel arm application
9. Numerous accessories are available to allow for special installations or adaptability
10. Finishes available in Aluminum (AL) and Duronodic (DU)

3/4" X 11-3/32" Hole Spacing

International Door Closer 853 Series
FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular arm and parallel arm bracket.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Fiat Partitions Surface Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.

Shipped with mounting screws.

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Truth/A.W. Anderberg 222SS 4 bar Egress Window Hinge

Used on larger casement windows to provide egress through the window.

Sold individually, these hinges are non handed

Truth/A. W. Anderberg part #35.11.00.102

General Partitions Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions
