Door Closers

Cal Royal 900 Series Door Closer

Pull or Push side, or Top Jamb mounting, Meduim Duty Door Closer, Powder Coated Painted Finishes, 5 year warranty

3/4" x 11-1/8" cylinder hole spacing

Cal Royal 900 Series Catalogue

Cal Royal Door Closer CR440
Uses the same templating as the LCN 4040
Door Closer with substantial savings.
Part # CR4040

Cal Royal CR4040 Catalogue

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Sargent 1330 Door Closer

Grade 1 requirement, non sized and non handed, heat treated rack and pinion for longer life, separate closing, latching, back check and power adjustments, and a 10 year warranty. The aluminum color is in stock, dark bronze finish may take a few days to ship.

We ship the 1331-JUO
3/4" x 12" hole spacing

Sargent 1430 Powerglide Door Closer

• ANSI/BHMA A156.4 Grade 1
• 25-year warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• Adjustable Spring Power allows the 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory.

Retrofits existing SARGENT 1230/1231 Series
Closer installations

Sargent 281 Powerglide Door Closer

ANSI/BHMA Grade 1 (A156.4)
• Meets Buy American Act
• Ten Year Warranty
• Versatile mounting applications permit
standard, top jamb, parallel and track
installations
• UL and cUL listed for use on fire doors
• Adjustable spring power allows 281
closers a size range of 1 through 6. They
are adjusted to Size 3 before leaving the
factory
• One door closer body for all applications,
non-handed

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

Sargent 350 Powerglide Door Closer

• ANSI/BHMA A156.4 Grade 1
• UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
• 10-year warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• Adjustable spring power allows 351 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications, non-handed

We ship the Sargent 351 Door Closer

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Hager 5200 Series Door Closer

Hager 5200 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5200 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5200 Door Closer body has a hole spacing of 3/4" x 12"

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

Dorma 8616 Door Closer

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

Dorma 8916 Door Closer

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

Dorma Conversion Plate BP86C

use this plate with the 8616 to convert the old style 7601 and 7801. By using this plate you will not have to redrill holes

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

The Dorma RTS88 Top Arm 8835 is for use on Double or Single Acting doors that have a 1" top rail.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

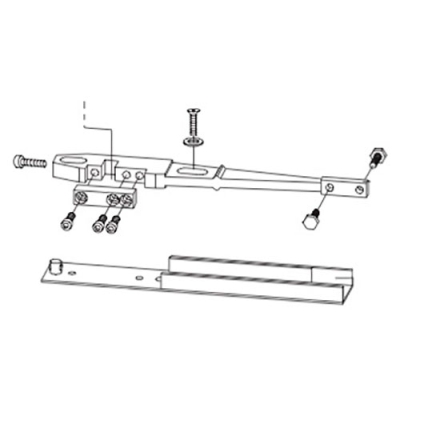

The Dorma RTS88 Top Arm with Channel 8832 is for use on Double and Single Acting Doors.   It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

The Dorma RTS88 Top Arm 8831is for use on Single and Double Acting doors.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

The Dorma RTS88 Offset Slide Arm 8812 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.

Dorma Part # 8812

The Yale Series 1900 Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

Yale Part # 1902/4

Handing diagram

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

Yale 4400 Door Closer

• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Staked valves
• Standard, separate and independent, latch, sweep and
  backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°,
  conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

2-3/8" x 6-3/4" hole spacing. This door closer replaces the 4400BF. This newer version is Barrier Free Compliant.

Yale 50 Series Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.
• All standard arm applications allow

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton
We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

Less all parts means, only the Cylinder!

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
  hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
  latch and backcheck adjustments
• Built-in positive dead stop prevents door
  from swinging beyond desired opening
  degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

Replacement springs for the older Pot Type Closers. You should find a number stamped on the end plug, which should relate to the "Size" below.

Plastic Cover

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape cover on the door closer
cylinder.

LCN Hold Open Arm Wrench T-1157

This wrench is used to adjust LCN Friction Hold Open Arms,
one side if for the 1-1/2" nut and the other is 1-3/16"

LCN part # T-1157

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

International Door Closer 520 Main Arm

International Door Closer part # 520

International 521 Forearm

Arm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521
