This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

The PBB Horizontal Floor Spring is similar to the Boomer 7811.  Available in Black, Dark Bronze, Stainless Steel, and Satin Nickel.

Partition Door Pull 3-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5403.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge

Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.

Shipped with mounting screws.

a=1-5/8"

This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

#6 X 3/4" Stainless Steel Sheet Metal Screws furnished.

Screw holes are slotted for adjustment

Extruded aluminum, with nylon brush

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Monarch 24 / 25 Series Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

Corner Guard 310

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.

3-1/2" x 3-1/2" x 48"
Custom sizes are available!

Screws included for mounting

Please allow 1 week shipping time

Finishes

Need extra brackets for your Secuity Latches, you can order them here.  The are sold individually.  Constructed of welded steel and this then powder coated black.

stainless steel
for both liquid and lotion soaps
ADA horizontal soap dispenser
8" w x 5" h x 5"d
40 oz. capacity
Bulk Fill

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Surface Mounted Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door Clearance

Cast stainless steel construction. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.

Shipped with mounting screws.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Stainless Steel Republic Steel Locker Recess Handle only, for a right hinged locker facing the locker. Also known as 7137202, 70125, 2125, 70028, rs2007. Current.

Monarch 19-R Exit Device

Hand: Non-Handed.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About .9lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 3"

Plate Height: 3/16"

Gap/Spacing: 1"

Partition Keeper Bumper Inswing 3/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 4903.

Shipped with mounting screws.

The Ives Wall Bumper Stop WS407-CVX our economically price wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

Partition Door Pull 2-3/4" Between Screws Cast Stainless Steel

Cast stainless steel construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6203.

Truth 23.54 Split Arm Window Operator

A common number found on this operator is 30866

4-1/2" long linkage arm, Ships with matching handle.

Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.

Shipped with mounting screws.

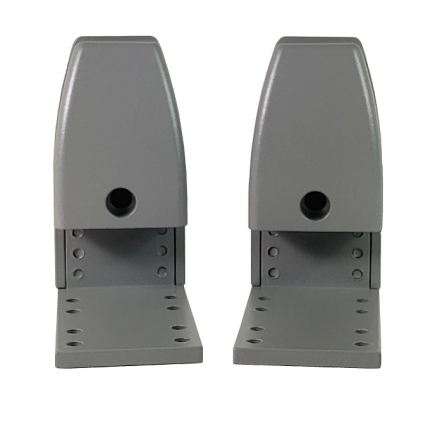

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"
