Von Duprin 88 Latch Tail Springs

This is the spring that pushes the latch bolt out. Used on all Von Duprin 88 Rim Devices. The spring measures 2-5/8" long by 3/16" diameter.

Sold in packages of 2.

Von Duprin Part #050393

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

Zamac die cast construction with polished chrome plating. Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.

Shipped with mounting screws.

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

Norton 8501 Door Closer, also known as the Norton 8501 Omni Door Closer, or 8501BF Door Closer.
We sometimes find 3301/3501 and 8301/8501 on the inside of the cover, along with the suffix BF (barrier free).

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This Norton 8501 replaces the 8501BF. This newer model now meets the ADA Barrier Free requirements.

Dormatic Exit Device Part 1690/1990 Rod Latch Assembly

Doromatic RL Bottom Latch measures 3-1/8" tall by 13/16" wide by 1-1/4" deep. Latch is 1/2" diameter. Also used on the Doromatic Falcon 1490 and EL versions of the 1490 and 1690.

Doromatic part # 4270100521

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Republic Steel Box Locker Handle Latch only. Made in the USA. Also known as 70503, 2580, 70014, rs1126.

Replacement Clarin Rubber Foot for your Clarin Chair Tips. Rubber size is 2" x 3/4" x 9/16" and the prongs are 1 1/4" apart.

Monarch Falcon 3788 Strike Top Strike

The Monarch Falcon 3788 Top Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.

Falcon Part # 3788

Hadrian Door Kit for Ada Concealed Hinges. Standard hinges that butt up to the edge of the pilaster. Chrome plated parts include concealed hinges with toggle & screw, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pull handles, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601010, replaces 601000.

Republic Steel Handle Latch Rubber Bumper only. Also known as 71301, 2560, 70018, rs1119.

Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"

Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.

Shipped with mounting screws.

Cal Royal 5000 Night Latch Trim

3" X 7-3/4"

Norton 8301 Door Closer, Sometimes called the Norton 8301 Omni Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This closer replaces the 8301BF Norton Door Closer. The standard 8301 now meets the Barrier Free Requirements.

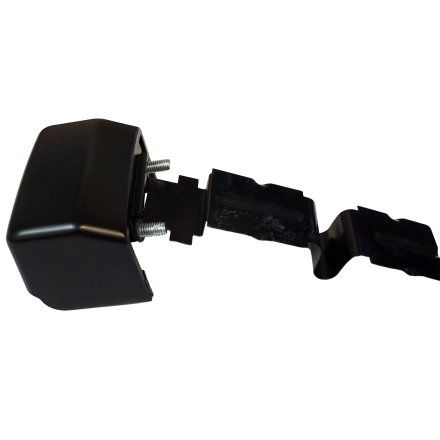

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

Von Duprin 8827-F Top Latch Kit 050462

This is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Durpin Part # 050462
Old Part # 102676

STAIR TREAD MOUNTING TAPE

Speeds installation of vinyl stair treads without the mess! Tape is sold in 4" wide rolls of 164 feet.

We recommend two strips of tape per tread. One on the nose and one at the back. As an example for the 36" tread you would need 72" or 6' of tape.

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Von Duprin 8827-F Bottom Latch Kit 050463

This is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Durpin Part # 050463
Old Part # 102681

The Adams Rite Latch Retraction (LR) Ciruit Board is used on devices sold after 2004.  The board measures 1-3/4 inches by 2-3/4 inches.

The Matte Black Indicator Latch and Keeper are designed to work with doors and pilasters that are 3/4" thickness. Constructed of zamac metal with a matte black finish. Comes fasteners for installation. Known as manufacturers part numbers 671600-BLK and 671601-BLK.

Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

Shower Curtain - 10 Ga. White Vinyl, Order 8 Hooks Separately - 48"W X 72"H

Flame-resistant, anti-bacterial, 10 gauge white vinyl fabric with standard height of 72". Curtain should be 6" wider than opening up to 54" and 12" wider than opening exceeding 54".

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Known as 10-1200-V48 by American Specialties.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

Toilet Partition One Ear Hinged Wall Bracket 1"

Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall HInged Wall Bracket. Manufacture part # 111359

Von Duprin 8827 Bottom Latch

Used on all Von Duprin 8827 non fire rated exits. Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

Cast Stainless Steel Slide Bolt Latch 1-1/2"W X 3-1/4"L, 2-3/4" Between Screws. Used on Accurate and Global Toilet Partitions. Cast stainless steel, also known as 40-256300, 40-8562899, 8698. This latch is Ada approved.

FEATURES

• Please note the factory will only sell in quantities of 10.
• Large, all-steel ADA Compliant User Paddle Key for ease of access
• Ergonomic dial with grip ring and non-slip coating
• Nut channels for easy installation
• Fully retracting automatic spring latch with standard 5/16” bolt
• 7 pre-set combinations for extended usage
• Supervisory key control
• Includes 2 User Keys
• Nut channels for easy installation
• Automatic locking
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available


APPLICATIONS

• Fits all standard single point or box lockers
• Model 1955ADA is for use with locker door hinged on left

FEATURES

• Please note the factory will only sell in quantities of 10.
• Ergonomic dial with grip ring and non-slip coating
• Fully retracting automatic spring latch with standard 5/16” bolt
• 7 pre-set combinations for extended usage
• Supervisory key control
• Nut channels for easy installation
• Automatic locking
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available


APPLICATIONS

• Fits all standard single point or box lockers
• Model 1955 is for use with locker door hinged on left; similar in operation to Master Lock 1655

Penco Locker Two person Latch Bar used 1970-1984. also known as 60860c.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.
