Complete HDPE Solid Plastic Alcove Partitions, Solid Plastic overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Stall doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.
Color Chart

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is cast stainless steel plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615103.

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

Complete Plastic Laminate Alcove Partitions, Plastic Laminate Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Plastic laminate Partitions ship in 2 business days.
Color Chart

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is cast stainless steel plated. All kits include security fasteners to install the brackets. Also known as 615163.

Global Partitions Ordering Online All Solid Phenolic Overhead braced Urinal Screen are Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Overhead Braced Urinal Screen's Available for the following widths -16", 18", 22", 28", 34", 40", 46", 52". Actual width is 1/2" less. 58"ht panels. All standard stainless steel brackets, headrail included, pilaster and panel included per order.
Global Solid Phenolic Color Chart

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

Global Partitions Ordering Online All Solid Phenolic Wall Hung Mounted Urinal Screens are Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Wall Hung Urinal Screen 1/2" thick by 48" high panel. Available in the following widths - 12, 18, 24". Specify color and width. Cast stainless steel bracket included.
Global Solid Phenolic Color Chart

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2868, and 650-8531-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, equal.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 14" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with same thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 190269

Global Partitions Complete Solid Phenolic material Alcove Partitions, Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard Stainless Steel Hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

Complete Stainless Steel Alcove Partitions, Stainless Steel Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Global Partitions Ordering Online All Solid Phenolic Floor Mounted Screens are Solid Phenolic color thru or black core Partitions manufactured by Global, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Floor mounted Urinal Screen's Available for the following widths -16", 18", 22", 28", 34", 40", 46", 52". Actual width is 1/2" less. 58" ht panels. All Standard stainless steel brackets, pilaster included.
Global Solid Phenolic Color Chart

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Toilet Partition Two Ear Wall Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/16" with the mounting screws are 2-13/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1639.

Shipped with screws

Toilet Partition Bracket One Ear For 3/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" x 2-5/8", with 1-3/8" hole spacing. 2-3/4" projection on the legs. Legs are 3/4" apart, and is designed for 3/4" thick panels. Also known as a Bathroom Stall One Ear Wall Bracket or One Wing Wall Bracket. The manufacturers part numbers are 1644, 650-2852, and 650-2858. Shipped with all the fasteners.

Toilet Partition "U" Wall Bracket For 7/8" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-1/8". Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1909.

Shipped with screws

Toilet Partition U Bracket For 1" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-1/4" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 1". Manufacture part number 1913

Shipped with mounting screws

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

Global Partition Complete Solid Phenolic Between 2 Wall Partitions, Overhead braced floor mounted stalls. Standard stalls 36"x60" depth (24" door), ADA stall 60"x60" depth (36" door). All stainless steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Complete HDPE Solid Plastic in a Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.
Color Chart

Complete HDPE Solid Plastic Between 2 Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60" x 60"depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.
Color Chart

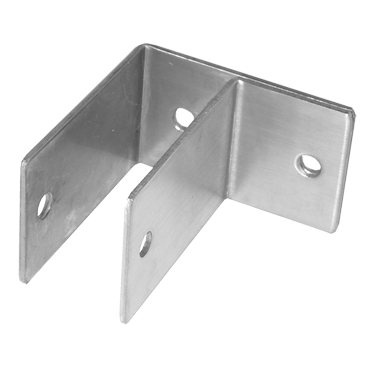

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel, Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1849.

Shipped with screws
