Jackson Exit Device Mounting Stud 1085/1095

The treaded part of the Jackson Mounting Stud has a 1/4-20 thread.

Jackson Exit Device 1085/1285/2086 Bottom Bolt Guide Assembly

Jackson Part # 30-320

Jackson Exit Device 1085 and 1095 Thumb Piece Dogging Pin

Jackson 1085 and 1095 dogging pin. Replaces the standard screw driver Jackson 1085/1095 Dogging Pin with a convenient Thumb Turn Dogging Pin. Includes everything shown in picture.

Jackson part # 30-1117

Jackson 1085 Hinge Case, also the 1095 Jackson inactive Case. Includes everything in the housing.

The housing mounting studs are 6-5/16" on centers

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

Jackson 1085 Concealed Vertical Rod Exit Device

Jackson 1085 Series Exit Device is universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.
Non Handed
Comes with 45" cross bar that is easily cut in the field, includes all screws, strikes and concealed vertical rods.

Replacement parts are available, in stock!

Jackson Exit Device Crossbar Screw 1085/1095

Self threading screw cuts its own threads into the extruded aluminum crossbar.

Jackson Part # There is not a part #. Jackson only sells the screw as a package with the crossbar.

Jackson 1085/1285/2086 Top Bolt Guide Assembly

1-1/2” deep x 1-1/16” wide x roughly 1” tall

Jackson Part # 30-934

Jackson Crossbar 1085/1095

Replacement cross bar is 45" long, cut to size in the field.

Ships with two crossbar screws.

Jackson Part # 30-744PKG or 30744PKG

Jackson 1085 Body Package

Includes everything shown in picture.

Jackson part # 30-1409

Jackson 1085 and 1095 dogging pin. Includes everything shown in picture.

Jackson part # 30-1115

1085/1285/2086 Jackson Top Bolt Trip

The Jackson Top Bolt Trip Assembly is the piece that triggers the Top Bolt Guide Assembly and allows the rods to extend.

Jackson Part # 30-824-

Jackson 1085 Lever Arms

Replacement Lever Arm for the Jackson 1085 Housings, both sides.  And the Jackson 1095 Inactive (hinge side) Housings.  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

Jackson Part # RH 30-1242/LH 30-1243

Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.

color chart

Instructions

Global Partitions Ordering Online All Solid Phenolic Panels are Solid Phenolic color thru or black core partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths -16", 18", 22", 28", 34", 40", 46", 52", 55", 58", 60", 65", 70", 76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

The Jackson Exit Device Rod and Case Assembly is used on 7' doors for the models 1085, 1285 and 2086 devices.

Jackson part # 30915J

The 1085/1285/2086 is mounted on the frame at the top of the door and in the floor at the bottom.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-0846.

Global Partitions Ordering Online All Solid Phenolic 10' Post & Panel Dividers are Phenolic color thru or black core partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. 10' Post & Panel's are available for the following widths 16", 18", 22", 28", 34", 40", 46", 52". Actual width is 1/2" less. x 58" high panels. All standard stainless steel brackets included.
Global Solid Phenolic Color Chart

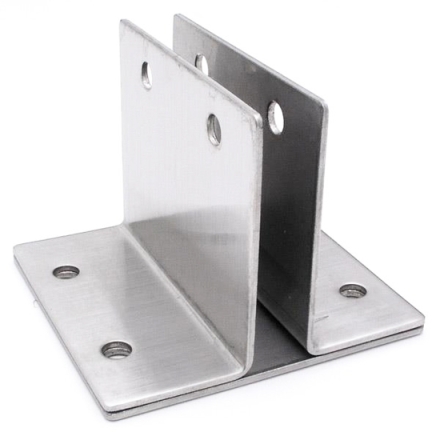

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart

Ordering Online All Solid Plastic(HDPE) Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16, 18, 22, 28, 34, 40,46,52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Part # 9TPP-XX (where XX is door opening width) Reinforcing for grab bars available
Color Chart

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

Hadrian Smooth Stainless Steel Panels are available with panel kits that include the brackets for the back wall and the pialster. All smooth surface stainless steel panels ship out in 48 hours and usually take 2-4 days travel. We offer a wide range of sizes, All partition panels are 1/4" less than the size and are 58" height. Partition panels are mounted 12" off the floor.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

Ordering Online All Stainless Steel Panel Dividers Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Stainless Steel Panels Include 4 Standard Chrome Plated Brackets Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76" Actual width is 1/2" less. Specify - Part # 9TPSS-XX (where XX is door opening width).

Global Stainless Steel Color Chart

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

Ordering Online All Plastic Laminate 10' Post & Panel Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 1 week, 3-4 days travel. 10' x 1-3/4" Square Post, _ _ x 58"ht panel and all standard hardware included. 16", 18" , 22", 28", 34", 40", 46", 52", 55", 58", 60", 65", 70" and 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Ordering Online All Plastic Laminate Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes: 4 standard chrome brackets. Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Specify - Part # 9TPL-XX (where XX is door opening width) Reinforcing for grab bars available.

Global Plastic Laminate color chart

Partition panel bracket kit for 1" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615033.

Ordering Online All Solid Plastic HDPE 10' Post & Panel Manufactured by Global Partitions. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All partition standard brackets included Floor & Ceiling Braced Post and Panel 1-3/4" square post up to 120" maximum with 55" high panel. This works great for entrances of bathrooms to add privacy when people walk in. See sizes below that are available for quick shipping. All sizes are ready for quick delivery. All kits included standard aluminum hardware.

Color Chart

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is chrome plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615100.

Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart

Partition panel bracket kit for 1" thick panel, One eared bracket that is cast stainless steel plated. All bracket kits include security screws to mount the brackets. Also known as 615053.

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions
