Ives Floor Mounted Door Holder FS43

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

Cal Royal Door Closer CR440
Uses the same templating as the LCN 4040
Door Closer with substantial savings.
Part # CR4040

Cal Royal CR4040 Catalogue

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Finishes

LCN Door Closer Parallel Arm Shoe

This is the shoe that LCN uses on some of there door closers for the parallel arm mounted door closers. A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

1714 Master Lock

• 5-Pin Tumble key

• Built in key locks, Bolt moves Horizontally.

• Comes with 2 user keys.

• Automatic locking springbolt.

• For box lockers

• Right or Left Hinged

• Master Keys extra, We will need your master key number if adding to your existing system.
  1-2 week lead time

The Command Access MLRK1-VD22 is a motorized electric latch retraction with REX for the Von Duprin 22.  This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD22 is a cost-effective and straightforward way to upgrade your Von Duprin 22 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Command Access MLRK1-JAC12 Motorized Latch Retraction Kit With REX is for use on the Jackson CRL 1285 and 1295 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

LCN Door Closer Rod And Shoe

This piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

Truth 24.89 Multi Point Locking System Sash Lock

31149 is stamped on the Right Hand Sash Lock

31369 is stamped on the Left Hand Sash Lock

Intermediate Hinge IP-1901 and IP-1902

Cast aluminum construction with steel bearings. The hinge measures 5" high by 2-1/2" wide. This hinge has a 3/4" offset. We find this hinge in the middle section of the door between the top and bottom hinges. Available in the Aluminum color and Dark Brown. See the dimensional information under more views.

Manufacture Part # IP-1901 and IP-1902
IP-1901 is for Left Hand Doors
IP-1902 is for Right Hand Doors

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

International Door Closer 300 Series Adjustable Power

UL Listed, Barrier Free Operation to Comply with Federal Accessibility Standards (ADA) ANSI A117.1.   Spring Power adjustable for a range of sizes from 8-1/2 lbs t Medium Spring Tension, fully adjustable after installation.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

Sargent 281 Powerglide Door Closer

ANSI/BHMA Grade 1 (A156.4)
• Meets Buy American Act
• Ten Year Warranty
• Versatile mounting applications permit
standard, top jamb, parallel and track
installations
• UL and cUL listed for use on fire doors
• Adjustable spring power allows 281
closers a size range of 1 through 6. They
are adjusted to Size 3 before leaving the
factory
• One door closer body for all applications,
non-handed

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

Scranton products solid plastic Free Standing stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

Hussey Bleacher Maxam Row Lock Left Hand. Also known as 2011242. Hardware included.

Ives Floor Mounted Door Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

Door Pull 26 1" Diameter

This door handle is made of 1" round stock in either solid, aluminum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

1" diameter material
2-3/4" projection

Finishes

8" GDP810
10" GDP101
12" GDP121

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

Sweep Lock for Aluminum Windows

Made die cast metal, unfinished. Lock measures 1-5/8" x 15/16" x 3/8" projection. Available in left and right versions, the Right Hand version is shown in the picture. This lock is found on aluminum framed windows. Ships with Latch and Nylon Bushing, the screw is not included.

Door Pull 24

This door handle features a 6" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
6" centers
8" overall
3/4" base diameter
2" projection

Finishes

Metal Door Flush Bolt FB458

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

The Aluminum Vinyl Door Shoe constructed of extruded aluminum and black vinyl.  This shoe is sold in 36 and 48 inch lengths and comes with #6 x 3/4 inch stainless steel sheet metal screws.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

Handing diagram

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This lever trim is now field reversible, the handing can be changed in the field.

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Detex EAX-300 Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Moritse Cylinder is not included
Powered by a 9 Volt Battery

Detex EAX-300 Installation Instructions

Gravity Door Coordinator

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

Cal Royal 900 Series Door Closer

Pull or Push side, or Top Jamb mounting, Meduim Duty Door Closer, Powder Coated Painted Finishes, 5 year warranty

3/4" x 11-1/8" cylinder hole spacing

Cal Royal 900 Series Catalogue

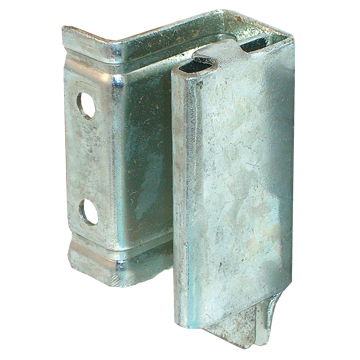

Durabilt Locker Door Jamb.
