Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

FEATURES

• Please note the factory will only sell in quantities of 10.
• Large, all-steel ADA Compliant User Paddle Key for ease of access

• Ergonomic dial with grip ring and non-slip coating
• 7 pre-set combinations for extended usage
• Supervisory key control
• Automatic locking
• Includes 2 User Keys
• Nut channels for easy installation
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Fits all lift handle gravity latch, multi-point lockers
• Model 1930ADA is for use with locker door hinged on right

General Toilet Partition Keeper Bumper For Square Edge 1-1/4" Thick Posts

Zamac die cast construction and polished chrome plated. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.

Shipped with mounting screws.

General Toilet Partitions Keeper Bumper For 1-1/4" Inswing Sq Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

General Keeper Bumper For Concealed 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices.  The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter.  The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long.  We find the number 971687 on the solenoid.

7-1-2025 No longer available.  If you have the 1690 or 1790 you can update your exit to the new mortor 47867200

Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

LCN SEM7850-828 Armature for Magnetic Door Holder

Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Alpine Hemlock Commercial Hand Dryer

• 10 second dry time. Faster then other competitive high speed hand dryers
• Hardwired or plug-in for quick installation
• Beautiful design and color
• 95% Savings over the cost of paper towels
• Blue light for users drying efficiency
• 5 Year limited warranty
• Choice of 7 splendid colors

Von Duprin 050535 El Solenoid Assy

Discontinued, we do not have any stock remaining.  You would have to order the QEL or QEL-HD Conversion Kit to update your exit to the new Mechanical Electric Latch Retraction:  https://www.robertbrooke.com/von-duprin-qel-baseplate-conversion-kit.html

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

Complete Stainless Steel Free Standing Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

LCN Part #'s
SEM7810-E050 1/2"
SEM7810-E075 3/4"
SEM7810-E100 1"
SEM7810-E200 2"
SEM7810-E400 4"

Metpar Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

The 9400 series is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw Pullman latchbolt. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. An 1/8" spacer plate is provided to accommodate varying door gaps. The 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC. The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks. Spacer Plate Included - the 9400 ships with one 1/8" spacer plate included in the box. Units ordered in a 630 finish are stainless steel. All other finishes have a black stainless steel spacer. Additional black spacer plates can be ordered as an accessory.

Global Partition compartments In A Corner Stall. Powder Coated Metal Overhead braced floor mounted stalls is most used. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60"depth (ADA 36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integrated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

LCN SEM7830 Magnetic Door Holder

Partition Keeper Bumper Inswing 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5113.

Shipped with mounting screws.

The Adams Rite 8800EL Exit Device is the Electric Latch Retraction version of the 8800.  We see this used with many card readers, especially in Hotel/Motel applications.

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  This device is used exclusively on aluminum framed glass storefront doors.  If your door is 35" wide, then you would order the 36" device.  We want to make sure they device is wide enough to span the glass on the storefront doors.  Replacement parts are available.

To order specify your door width, color and voltage of the solenoid.

LCN SEM7810-514 Coupler Assembly Kit

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

FEATURES

• Please note the factory will only sell in quantities of 10.
• Supervisory key control
• Ergonomic dial with grip ring and non-slip coating
• Automatic locking
• 7 pre-set combinations for extended usage
• 3-digit dialing combination with 5-pin tumbler key plug
• Patent pending button guard to protect lock function from overstuffed lockers
• Nut channels for easy installation
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Fits all lift handle gravity latch, multi-point lockers
• Model 1931 is for use with locker door hinged on left; similar in operation to Master Lock 1631

Outswing Keeper Bumper, 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5570.

Shipped with mounting screws.

Fiat Partitions Keeper Bumper Concealed And Strike For Concealed Latches Inswing/Outswing 1-1/4"

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960

Shipped with screws for mounting.

Same as the 9S8861

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

The same as the Falcon / Dor-o-Matic 1790 with Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Center case and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field select-able.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Push bar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 Armature for Magnetic Door Holder

American Sanitary Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

Von Durpin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

● Fully reversible
● Five popular finishes
● Field sizeable
● Hex key dogging
● 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

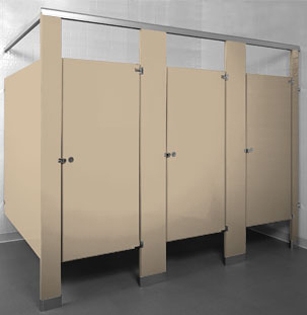

Global Partitions Free Standing Toilet Stalls in Powder Coated Metal Overhead braced floor mounted restroom stall. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth (36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Intermediate Hinge IP-1901 and IP-1902

Cast aluminum construction with steel bearings. The hinge measures 5" high by 2-1/2" wide. This hinge has a 3/4" offset. We find this hinge in the middle section of the door between the top and bottom hinges. Available in the Aluminum color and Dark Brown. See the dimensional information under more views.

Manufacture Part # IP-1901 and IP-1902
IP-1901 is for Left Hand Doors
IP-1902 is for Right Hand Doors
