The Norton 7700PT Arm Stud connects the arm to the slider in the track.  The Stud measures 1" overall length, including the stud head.

Pull Plate 5020

The plate is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Monarch 19-R Exit Device

Hand: Non-Handed.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

Accurate Commercial Partitions Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x 60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Universal Handing Partition Hinge Stainless Steel Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8"ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

Bobrick B-2888 multi roll toilet tissue dispenser for surface mounted only. Satin finish in stainless steel dispensing mechanism. The door is equipped with a tumbler lock and holds up to two rolls 5-1/4" wide. The extra roll at the top will drop in place when the bottom roll is out. Theft resistant heavy duty spindles. The unit is 6-1/16" w x 11" ht x 5-15/16" deep.

Partition Top Hinge Casting

Unplated Zamac die cast construction. The outside dimensions of the top hinge casting are 3-7/16" high by 2-3/8" wide by 1-5/32" deep. The casting features four holes, two of them are 3/8" diameter, one is 7/32" diameter and the fourth is a threaded hole for a 5/16-18 screw. The two U channels have spacings of 13/16" and 1" on the other. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4546. Used with AMPCO and Metpar Toilet Partitions.

Fiat Partitions Keeper Bumper For 1-1/4" Outswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210

Shipped with mounting screws.

General Keeper Bumper For Concealed 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Metpar Partitions Keeper Bumper For 1-1/4" Outswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210

Shipped with mounting screws.

Bobrick Partitions Nylon Cam

Natural nylon construction. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

Ampco Partitions Bottom Cam Housing Chrome Plated

Chrome plated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060

ASI Locker Lock Bar 27" includes lock bar, lifter, trigger, latch clips and coiled springs. For double tier lockers, 72" overall height of locker. The lock bar is what is riding vertically to lock and unlock from the frame of the locker. When a person lifts up on the locker handle it is attached to the lock bar which releases the door from the frame of the locker.

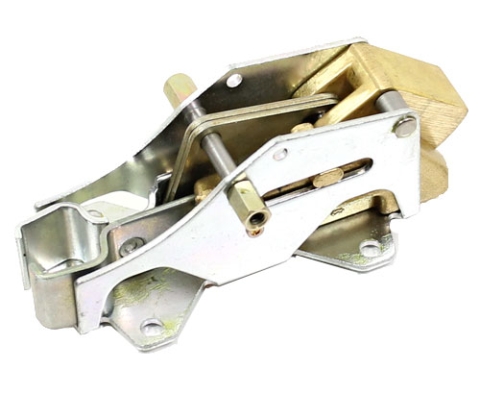

Von Duprin 8827 Top Latch Case for non fire rated doors. This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted postion.

Von Duprin part # 050460
Old Part # 101750

Bobrick B-3944 recessed convertible paper towel dispenser with waste receptacle in a satin finish stainless steel. The door has a 90 degree return. dispenses 600 c-fold or 800 multifold towels. Removable leak-proof waste container has a 12 gal. capacity. Rough wall opening 16"w x 54-3/4"ht x 4" minimum depth.

The Detex ECL-230X Panic Device is a single point deadbolt device. One size fits 36 to 48 inch doors. The dead bolt has a 1 inch throw and is saw resistant. Locking and unlocking dead bolt always arms and disarms alarm.  The alarm is 100 decibels and is powered by a 9 volt battery. Email for more information.

Bobrick Toilet Partition Keeper Bumper For 1" Outswing Square Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5720.

Shipped with mounting screws.

LCN SEM7820-516 Magnet Core Assembly

Tri Voltage Magnet Core only. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Pull Plate 5810

7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch Plate only.

Finishes

Chrome Plated Partition Ada Throw Latch 3-1/2" Between Screws Latch Only

Chrome plated brass construction. Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partiton Throw Latch. Manufacture part # 5151

Shipped with mounting screws.

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The Detex ECL-230D-PH Alarmed Exit Device is a battery operated, rugged deadbolt panic device, and is UL-Listed Panic Hardware for 36" to 48" doors. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force, and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm. Rim Cylinder is not included.

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

Toilet Partition Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.

Shipped with mounting screws.

also known as 9F0302SS

1" Diameter Solid Aluminum Round

Anodized Finishes, Aluminum or Dark Brown

Cross bar has a 33-1/16" Center to Center screw spacing

Mounting Hardware Included

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Partition Keeper Bumper For 1-1/4" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5213.

Shipped with mounting screws.

Metpar Partitions Keeper Bumper 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-1/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/32" deep. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5520.

Shipped with mounting screws.

The Detex ECL-230D Alarmed Exit Device is a battery operated, rugged deadbolt panic device. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm.  Rim Cylinder is not included.

If you have a door that requires Panic Hardware, then use the ECL-230D-PH

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.
