Search results for: '1590 retain part'

Doromatic 2090 / 1090 Back Plate Sub Assembly

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Monarch 19 Series Dogging Pin Package

Used on the Monarch 17,18 and 19 Series Panic Devices.  Pin measures 9/16" overall length with a 5/16" diameter head and 3/16" diameter shaft.  Sold as a package of 10.

Monarch Part # 060110
Old Part # 4086

Dor-o-Matic top strike.

Used on the Dor-o-Matic 1490, 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.

Doromatic part # PB48

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod.  Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Von Duprin 88 Spring Stop Assembly

This is the piece that holds the hinge case spring in place. It is used on all of the Von Durpin 88 models.

Von Duprin Part # 050451
Old Part #107682

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Von Duprin Exit Device 88 Tube Attaching Ring

Von Duprin 55 and 88 Tube Attaching Ring.

Used as a sleeve the wedge tite screw and wedge use to apply pressure to the crossbar. Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.  The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Von Duprin 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

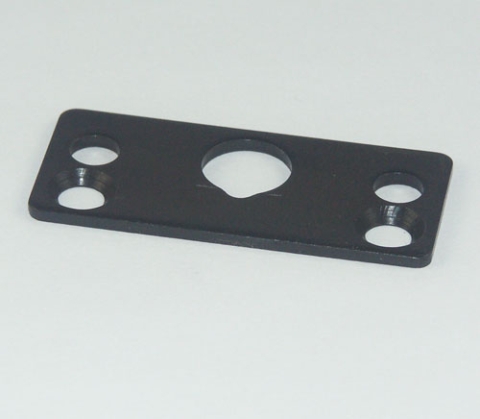

Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.

Doromatic part # SPACER.107 or PB326

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 9927 Top Vertical Rod

Please call if your door is higher than 7'1", The rod is field adjustable for doors up to 7'1". For larger doors, we have to order a Rod Extension which we do not show online yet.

Old Von Duprin part # 110573
New Von Duprin part # 050512

Jackson Exit Device replacement 1295 Latch Assembly.

Jackson Part # 302679

Yale 7150 Chassis Assembly, Yale Part # 60-7150-0005-048

Jackson Door Closer Center Hung Arm

Jackson Part # 20-400B

Jackson Door Closer Center Hung Arm

Jackson Part # 20-2085

Jackson Exit Device 1095 active housing. Includes everything shown in picture.
The distance between the mounting studs is 6-5/16".

Jackson part # 30-988 Right Hand Body
Jackson part # 30-989 Left Hand Body

Left Hand Housing shown in the aluminum finish.

Adams Rite Old Style Dogging Pin

This Adams Rite part is a replacement for worn or stripped dogging pins. The older style pins were an 1/8" allen head hex. The replacement is 5/32".

Adams Rite part # 24-0730

Sargent Pa Bracket

Sargent part # 125-P9

Sargent Hold Open Arm

Sargent part # 25-H

Dor-o-Matic 990/1090/1990/2090 Cross Bar

41" or 48" cross bar is sent, cut to size.  48 inch bars are not in stock, leadtime is 3 weeks

Doromatic part # CBAR or 47285197 for 41" bars and 47286482 for the 48" bars.

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Sargent Regular Arm

Sargent Part # 25-0

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

4-1/4" long

Dorma part # AM385A

Marsh Map Rail 2" x 10' Insert, 3 Pack

Part # MR2T10 Tan Cork

Part # MR2G10 Gray Cork

Has to ship by Truck

Sargent 20/30/60/80 Dogging Assembly

We only sell the dogging assembly parts as a complete set. This Dogging Assembly Kit is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Exit Devices. This dogging assembly kit has been around since the 1980's.

Sargent part # 68-2596

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

Truth Handless Lock Key

Truth part # 20313
