Von Duprin 9927 Latch Cover Screws

General Partitions Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618

The Hub Position on this Latch is the ED4200

Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

General Partition Concealed Latch Knob & Cover

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Accurate Partitions Surface Mounted Slide Bolt Latch

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

also known as 9G0136

Knickerbocker Door Latch Inside Mechanism Kit, Door Pin Kit, also known as 8836, H749, H748. Works with General partitions. Used with plastic laminate toilet partitions.

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

American Sanitary Slide Bolt Latch Chrome Plated.

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Sargent 8700 Old Style Top Latch-Before 11-2002

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.

Sargent Part # 97-2434

1/4-20 thread Leveler swivel nylon base glide. Stop wobbling of uneven floors with this Metal Furniture Foot.  1 1/8" base diameter and 1 1/8" stem length. Screw into a thread leg hole to reach your desired height. Combine with a tnut to install in wooden furniture legs.

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Monarch 603 Concealed Top Latch Kit

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42 or 1001492 includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Global Ada Latch Knob & Cover, W/ Screw Chrome Plated, also known as 40-8513370g. This was used up until October 2021.

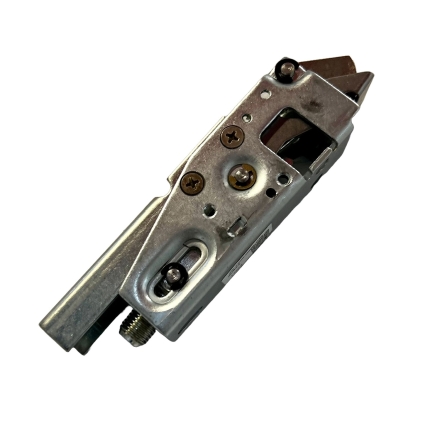

Yale Upper Latch 60-7220-0066-048 for use on the 7220 Narrow Stile Concealed Vertical Rod.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Medart Bleacher Latch Bracket Left Hand. 2" Hole Spacing.

Dor-o-Matic 1690/1790 End Case Cover, or Hinge Case Cover

Doromatic part # ECAP.130 or PB314. Formly known as the ECAP.129

Color: Black

Monarch Falcon 2130 Bottom Latch Strike

The Monarch Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

Window Spring Latch.

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Flush Metal Partitions Concealed Latch Housing

Zamac die cast construction. The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

The Jackson 30-1311 Top Latch is used on the 2085 and 3185 Exit Devices. The new number for this product is 301311PKG.

Leveler Glide with Metal Swivel Base. 1/4-20 thread metal base swivel glide. Stops the wobble of an uneven floor. 1 1/4" base diameter and 1 1/8" stem length. Can also be used with a t-nut to install in wooden legs. Use a spring clip to install in hollow legs.

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

Corbin Russwin ED4400/5400 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64

Flush Metal Partition Concealed Ada Latch Knob Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Yale 7110 Top Latch

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

The Global Partitions stainless steel latch knob & cover with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished. The manufacturer part number is 40-8263380. This was used up until October 2021.
