Von Duprin 8827 Top Latch And Cover

The Von Duprin 8827 Top Latch and Cover in one convenient package. The package includes the Top Latch 050460, the Cover 050464, and cover screws and mount screws.

Von Duprin Part # 050466

Knickerbocker Turn Latch Knob Only Chrome Plated, also known as 1410. Works with General partitions.Used with powder coated steel toilet partitions.

Von Duprin Exit Device 48 Top Latch Kit 050494

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

Von Duprin 9927 Top latch

Used on all the Von Durpin 9827 and 9927's. This latch updates your current latch if your device was installed before October 1998. If your device is newer that October 1998, then use the G050400. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050091

Knickerbocker Door Latch Inside Mechanism Kit, Door Pin Kit, also known as 8836, H749, H748. Works with General partitions. Used with plastic laminate toilet partitions.

The Adams Rite 8600EL Electric latch Retraction Concealed Vertical Rod is designed for narrow stile aluminum framed glass doors.  The device will fit on stile widths of 2" or more.   The EL version We recommend this device for replacement or upgrading your current 8600 to Latch Retraction, modifying your existing door to this exit device will be labor intensive.  The 8611EL would be for the aluminum finish and the 8622EL would be or the dark bronze finish.

This device is Electrified, please see the 8600 for the non Electric Device.

LCN 4630 Low Energy Door Closer

Comtec Toilet Partitions Aluminum Slide Bolt Latch 3-1/2" Screws

Clear anodized aluminum construction. Base is 4-1/2" tall by 2" wide by 1/8" thick. Latch bolt is 3-1/8" long by 1" wide by 1/4" thick, and has a 1" throw. The latch bolt is 9/16" from the bottom of the base to the under side of the latch bolt. Also known as a Bathroom Stall Aluminum Slide Bolt Latch and Toilet Partition Locks. This latch is usually used on Solid Plastic (HDPE) Toilet Partitions. The manufacture part #'s are 4988, 650-4051, 650-8543 and HLSLA.

This latch ships with the mounting screws.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618

The Hub Position on this Latch is the ED4200

Metpar Partitions Slide Bolt Latch with indicator Chrome plated Zamac die cast construction. The latch housing face plates measure 1-3/4" wide by 1-1/4" high. The latch thickness is 1-1/16". The latch bolt measures 3/4" by 3/16" with a 15/32" throw. Also known as a Metpar Bathroom Stall Concealed Latch. Manufacturer part # 4240, 13882. Metpar Toilet Partitions is the only manufacture that we know of that uses this latch.

Von Duprin 9927 Latch Cover Screws

General Partitions Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

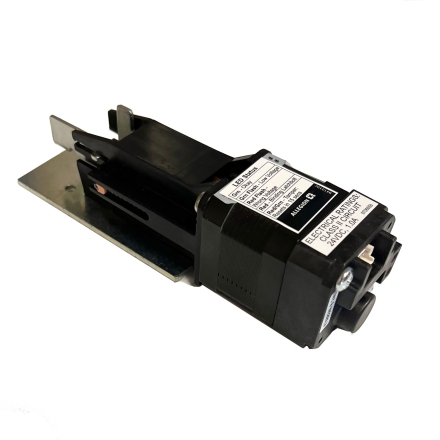

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

Flush Metal Partition Concealed Ada Latch Knob Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150

Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

General Partition Concealed Latch Knob & Cover

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Sargent 8700 Old Style Top Latch-Before 11-2002

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.

Sargent Part # 97-2434

Monarch 603 Concealed Top Latch Kit

Accurate Partitions Surface Mounted Slide Bolt Latch

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

also known as 9G0136

American Sanitary Slide Bolt Latch Chrome Plated.

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Global Ada Latch Knob & Cover, W/ Screw Chrome Plated, also known as 40-8513370g. This was used up until October 2021.

Yale Upper Latch 60-7220-0066-048 for use on the 7220 Narrow Stile Concealed Vertical Rod.

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42 or 1001492 includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Dor-o-Matic 1690/1790 End Case Cover, or Hinge Case Cover

Doromatic part # ECAP.130 or PB314. Formly known as the ECAP.129

Color: Black

Medart Bleacher Latch Bracket Left Hand. 2" Hole Spacing.

Corbin Russwin ED4400/5400 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64
