Doromatic Surface Strike STK45

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

Dor-o-matic Complete housing assembly for the 990/1990 and the inactive sides of the 1090/2090. Includes all components to replace your current housing. Housing measures 7-1/2" long by 1-3/16" wide, with a 6-1/4" center to center stud mounting.

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902782 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

Doromatic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic 1590 Cylinder Assembly 159CA-NL

Doromatic part # 159CA-NL

The Dor-O-Matic 1590 Retractor RTR10 is one of the components you need to convert a Exit Only device to a NL or HB device.  The RTR10 along with the 159CA-NL or 159CA-HB is all you need, along with a Key Cylinder.

Same as the G199002, but longer. The Doromatic long stud can be used in conjunction with the GMH124 Jack Nut when the threads have pulled out of your door. Doromatic part # STUD.102

Doromatic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

Dor-o-Matic retaining ring. Used to retain the concealed vertical rods.

Doromatic part # RRING.109

1/2" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

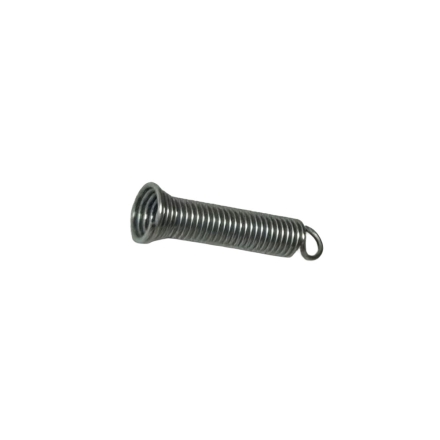

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Doromatic 1690 Auxiliary Package PKG.150 is one of the installation packages shipped with new devices.   The kit includes the Rod Bearing Bushings, Traveler Lift Bracket, Retaining Rings and 5/32" Dog Key.

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dormatic Exit Device Part 1690/1990 Rod Latch Assembly

Doromatic RL Bottom Latch measures 3-1/8" tall by 13/16" wide by 1-1/4" deep. Latch is 1/2" diameter. Also used on the Doromatic Falcon 1490 and EL versions of the 1490 and 1690.

Doromatic part # 4270100521

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-matic 990/1090/1990/2090 Lever Arm Pivot Pin measures 1-1/32" long by 9/32" diameter.

Doromatic Part # PIN.115

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.  The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic 1590 Latch Bolt Assembly

Replacement Latch Bolt Assembly for the Falcon Doromatic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

Select the height of your door for the correct rod.

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

Doromatic Exit Device 1690/1990 Latch Mounting Bracket PB54

This bracket is used to mount the top and bottom latches on the 1990 and 1690 Dor-o-matic Panic Exit Devices.

Dor-o-Matic Part # BRKTASY.101

Dor-o-Matic top strike.

Used on the Dor-o-Matic 1490, 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.

Doromatic part # PB48

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic PB48 Strike Shim Package Of 10 Pieces

This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.

Doromatic Part # SHIM.112

Dor-o-Matic 1990/2090 Set Screw. This set screw goes thru the housing to secure the housing on the mounting studs.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316
