Doors| Dor-O-Matic

Exit Device Dog Key 5/32" X 2-1/8" Long

Used on Von Duprin 55 and 88 Exit Devices, Corbin Russwin Exit Device, Yale Exit Device and Dor-o-Matic exit devices. This Hex Dog Key is not long enough for the Von Duprin 33, 34, 33A, 35B, 98 or 99 Exit Devices.

also known as Hex Key, Dog Key, Allen Key, Dogging Key

Doromatic 1590 Latch Bolt Assembly

Replacement Latch Bolt Assembly for the Falcon Doromatic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603

Doromatic 1390 Push Bar Spring PB43

The Doromatic 1390 Spring PB43 is also known as Part # 4270106635.   This spring was used on the obsolete 1390 exit device to push out the touch pad.  Spring measures 15/16" long by 5/16" by 3/8".



Doromatic Surface Strike STK45

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

1790 parts breakdown

3/4" x 9-1/16" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.

Doromatic SC80 Door Closer

3/4" x 12" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching, Backcheck and Power Adjustments
Grade 1 Closer

We ship the SC81 Rw/PA

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Dor-o-matic 1090/2090 Assembly Plate. This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

Dor-o-matic Complete housing assembly for the 990/1990 and the inactive sides of the 1090/2090. Includes all components to replace your current housing. Housing measures 7-1/2" long by 1-3/16" wide, with a 6-1/4" center to center stud mounting.

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902782 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Same as the G199002, but longer. The Doromatic long stud can be used in conjunction with the GMH124 Jack Nut when the threads have pulled out of your door. Doromatic part # STUD.102

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic retaining ring. Used to retain the concealed vertical rods.

Doromatic part # RRING.109

1/2" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic replacement pinion gear. This gear is what the key cylinder fits into to actuate the exit device Doromatic Part # CAM.102 and also PB5

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 990/1090/1990/2090 Lever Arm Pivot Pin measures 1-1/32" long by 9/32" diameter.

Doromatic Part # PIN.115

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

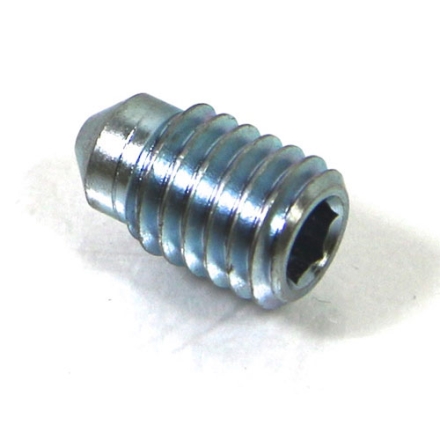

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.  The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

Select the height of your door for the correct rod.

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

Doromatic 1990/1690 traveler assembly

This bracket connects the rods to the exit device. The traveller measures 4-1/8" long by 7/8" wide by 1/4" deep. Roller has a 3/8" diameter roller.

Doromatic Part # 4270100013 or PB88

Doromatic Exit Device 1690/1990 Latch Mounting Bracket PB54

This bracket is used to mount the top and bottom latches on the 1990 and 1690 Dor-o-matic Panic Exit Devices.

Dor-o-Matic Part # BRKTASY.101

Dor-o-Matic top strike.

Used on the Dor-o-Matic 1490, 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.

Doromatic part # PB48

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic retractor. The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Dor-o-Matic 1990/2090 Set Screw. This set screw goes thru the housing to secure the housing on the mounting studs.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar

41" or 48" cross bar is sent, cut to size.  48 inch bars are not in stock, leadtime is 3 weeks

Doromatic part # CBAR or 47285197 for 41" bars and 47286482 for the 48" bars.

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
