Sargent 20/30/60/80 Connecting Arm Spring

Push Bar Return Spring

Sargent part # 68-0236

Sargent Exit Device Lever Return Spring

This spring is used on Sargent Lever Trims for there Exit Devices.

2-1/8" LONG

Sargent part # 97-0425

Sargent 60/80 Push Bar Pin Retaining Clip

used on Sargent 60 and 80 series to retain the push bar and channel axles. Use with the 68-0229 and 68-0230.

Sargent part # 01-0098

Sargent 60/80 Push Bar Pins-Short Pin

Also known as the push bar axle, this is the pin that you see on the push pad.

1-9/16" LONG

Sargent part # 68-0229

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

Sargent 20/30/60/80 Dogging Assembly

We only sell the dogging assembly parts as a complete set. This Dogging Assembly Kit is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Exit Devices. This dogging assembly kit has been around since the 1980's.

Sargent part # 68-2596

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Non-handed

Sargent 3828 Series Exit Device

The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

3-1/2" straight spindle thread is 16 tpi. 2-1/4" knob

Sargent, 4-3/4" swivel spindle,
solid centers, w/ pin holes

Swivel spindle
9/32" square, 16 tpi
4-3/4" long, w/ two solid centers

Swivel, 9/32" square,
16 tpi, 4-3/4" long,
with stop pin

4-3/4" long
9/32" square
16 tpi

Replacement spindle for the 8100 and 8200 old style series mortise locks , January 1990 to current.

Includes lever bushings, roll pin and set screws

Sargent 1430 Powerglide Door Closer

• ANSI/BHMA A156.4 Grade 1
• 25-year warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• Adjustable Spring Power allows the 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory.

Retrofits existing SARGENT 1230/1231 Series
Closer installations

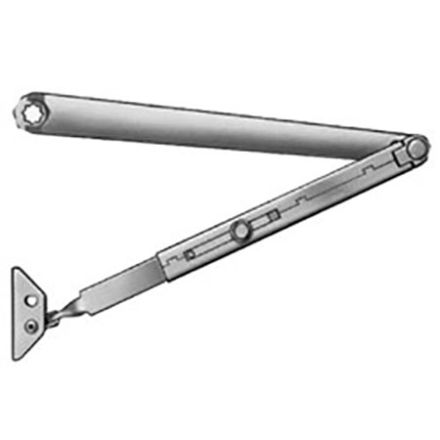

Sargent Regular Arm

Sargent Part # 25-0

Sargent H.D. Holder Stop Arm

Sargent part #25-PSH

Sargent Pa Bracket

Sargent part # 125-P9

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

Sargent Hold Open Arm

Sargent part # 25-H

Sargent 350 Powerglide Door Closer

• ANSI/BHMA A156.4 Grade 1
• UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
• 10-year warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• Adjustable spring power allows 351 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications, non-handed

We ship the Sargent 351 Door Closer

Sargent 281 Powerglide Door Closer

ANSI/BHMA Grade 1 (A156.4)
• Meets Buy American Act
• Ten Year Warranty
• Versatile mounting applications permit
standard, top jamb, parallel and track
installations
• UL and cUL listed for use on fire doors
• Adjustable spring power allows 281
closers a size range of 1 through 6. They
are adjusted to Size 3 before leaving the
factory
• One door closer body for all applications,
non-handed

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match
